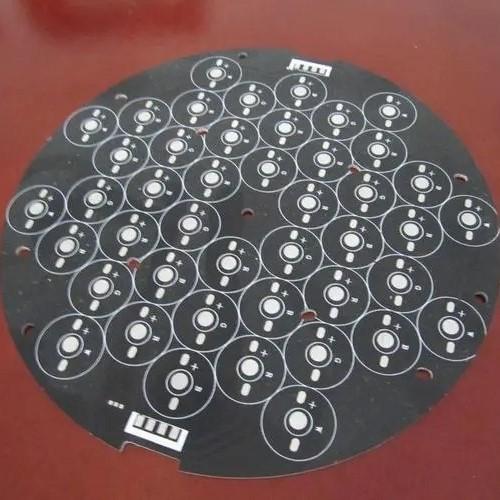

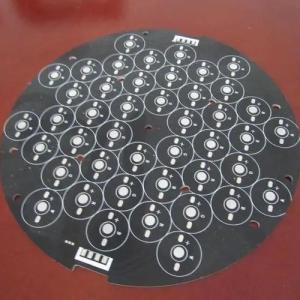

Customized 32L Copper Base Led PCB Board Metal Core Gold Circuit Board

Categories Aluminium PCB
Brand Name: HighLeap
Model Number: PCB Board
Certification: ISO9001/Iso14001/CE/ROHS
Place of Origin: China
MOQ: 1pcs
Price: USD 1-30 piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 piece per week
Delivery Time: 1-15 working days
Packaging Details: Vacuum Package
Copper Thickness: 0.5oz-10oz.
Surface Finishing: HASL..
Certificate: CE.
Base Material: Aluminum..
Board Thickness: 0.2mm-6.0mm\
Layer: 1-32 Layers.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized 32L Copper Base Led PCB Board Metal Core Gold Circuit Board

Customized Led Pcb Copper Base Board Metal Core Gold Circuit Board Other Pcb Manufacture

PCB ItemManufacture Capacity
Layer Counts1--32L..
Base Materialaluminum...
Material Thickness(mm)0.40�.60�.801.001.201.501.602.02.43.2
Max board size(mm)1200x400mm
Board Outline Tolerance±0.15mm
Board Thickness0.4mm--3.2mm
Thickness Tolerance±10%
Minimum line/space0.1mm
Min Annular Ring0.1mm
SMD Pitch0.3mm
Holes
Min Hole Size(mechanical)0.2mm
Min Hole Size(laser hole)0.1mm
Hole Size Tol (+/-)PTH:±0.075mmNPTH: ±0.05mm
Hole Position Tol±0.075mm
Plating
HASL/LF HAL2.5um
Immersion GoldNickel 3-7um Au:1-5u''
Surface FinishHALENIGPlated GoldImmersion GoldOSP
Copper
Copper Weight0.5--6oz
Color
Solder maskGreen, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue---custom
Silk screenWhite, Black, Blue,Yellow--custom
Acceptable File FormatGerber file...
CertificateISO9001...
About HighLeap Electronic
Advantages of HighLeap Electronic
Our PCB Equipments
Our Certifications

FAQ

Q1:Could you make keyboard pcb design for me?Also is your offer including a QMK/VIA firmware port for the board?
A1:we provide one stop keyboard pcb service and for the QMK/VIA are supported
Q2:Regarding the development/production of a daughter board,can you provide this as well and is it included in the
price?A2:sure,the quotation for the keyboard pcb also with daughter board,JST connector.
Q3:What is your minimum order quantity?
A3:For keyboard pcb,the MOQ is 1 pcs.
