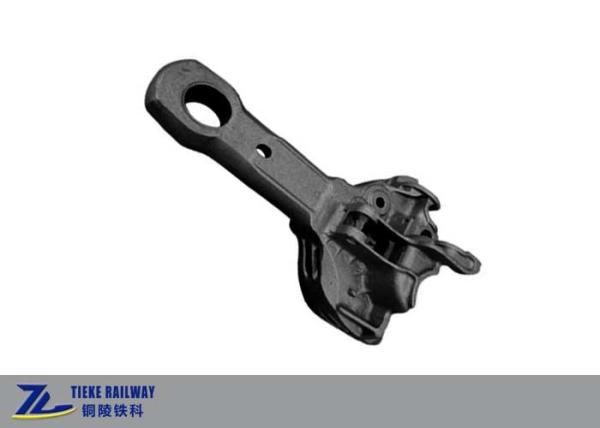

FR Interlock Rotatable Train Car Coupler Anti Decoupling AAR S117

AAR F Couplers FR Couplers Anti Decoupling / Interlock / Rotatable Coupler

Breif introduction:

F-type interlocking coupler was developed on the basis of H-type tight coupling for passenger cars in 1947 and became AAR standard coupler in 1954.

F coupler is made of E grade steel, material complies with AAR M201 standard, profile comply with AAR S117 standard, manufacture comply with AAR M211 standard.

FR rotatable couplers are developed to meet the requirements of coals and other bulk goods’ unloading without uncoupling and tipping, on base of F type coupler. FR Interlock rotatable couplers have been widely applied in heavy unit freight wagons, and have improved the transportation efficiency significantly.

Main technical features:

• High structural strength, small coupling clearance, anti uncouple, interlock and auto centering functions, reliable function, good curve trafficability;
• An additional anti falling device and one auxiliary interlock device are under the hook head;
• Touch profile gap 9.5mm, 51% smaller than E type coupler;
• The bottom support at the front end of coupler can effectively prevent the broken coupler from falling onto the rail, resulting in major accidents.

Main technical parameters:

Main dimension:

Tongling Tieke Railway Equipment Co., Ltd (Tieke Railway) is a high tech private company transformed from a factory under Chinese Ministry of Railways in 2016. It is specialized in manufacturing, repairing, renting various railway wagons and providing various wagon spare parts for customers in industrial, mining, metallurgy, chemical, oil, energy, logistic, and local railway transportation who own railway lines for self use.

Tieke Railway is located in Lion Mountain High Tech Industrial Development Zone, Tongling City, Anhui Province, with convenient distance to express way, high speed train, and Nanjing Lukou International Airport. It has 8.5 million USD register capital, 60000㎡covered area and 30000㎡plant area. There are 250 employees, 30 of which are senior and intermediate engineers and have rich working experiences in Chinese railway.

Tongling Tieke Railway Equipment Co.,Ltd has a complete produce line for railway wagons manufacture and repair. It is capable of providing comprehensive services like railway wagons R&D and manufacturing, railway wagons reconfiguration, railway wagons repairing, railway wagons renting, railway wagon spare parts and etc. It manufactures, maintains and repairs various railway wagons like open wagons, flat wagons, self-unloading wagons, hot metal wagons, hopper wagons and other special function wagons. Besides, Tieke Railway could manufacture and supply various kinds of wagon spare parts like wagon bogies, wheel and axles, braking system parts, coupling system parts and other wagon parts. Each year, Tieke Railway could manufacture over 1000 sets wagons, repair 3000 sets wagons, rent 650-1000 sets wagons and sell over 50,000 sets wagon spare parts.

Tieke railway rents over 600 sets flat wagons, ballast hopper wagons to national companies like China Railway Group(CRG), China Railway Construction Corporation(CRCC), CRRC and etc, which create a precedent for private enterprises to rent railway vehicles to state-owned enterprises and central enterprises. Since 2018, Tieke Railway has provided various railway wagons to customers in Laos, Vietnam, Myanmar, South Korea, Russia, Australia, Sierra Leone, Zambia, Germany, Italy and etc.

On the basis of consolidating the original business, Tieke Railway has increased scientific and technological investment and accelerated scientific and technological innovation and new product development. Since 2018, the company has applied for over 30 product patents and developed a variety of domestic advanced and practical technical products related to railway equipment. In 2019, the company obtained the high-tech enterprise certificate issued by the national science and technology department and the qualification to produce military product.

Consolidate the existing steel, coal, chemical industry, local railways, electric power and other railway self use wagons customers; Combined with the development trend of national urban rail transit, expand the new construction of metro vehicles; Provide on-site maintenance and transformation services for self owned vehicles for industrial and mining enterprises; Respond to the national policy of military civilian integration and gradually apply for military production qualification; Jointly develop new products with domestic scientific research institutions and colleges and universities; Cross shareholding with related enterprises to improve product market share; With ‘one belt and one road’ policy, explore and develop international railway wagons market and railway wagon spare parts market.

Tieke Railway has acquired ISO9001 quality management certification, ISO14001 Environmental management certification and ISO 18001 health and safety management system certificate. Adhering to the tenet of ‘ human oriented, pragmatic and efficient, sincere cooperation, mutual beneficial and win-win’ , Tieke Railway provides high quality railway products and satisfactory services to customers all over the world. Warmly welcome to visit our factory!
