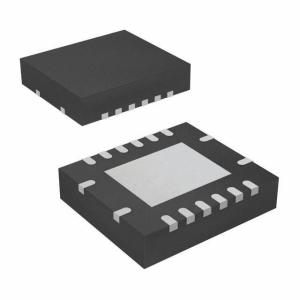

AM26LV31EIRGYR Integrated Circuit IC Chip Driver Diff Quad LV HS 16QFN Wireless Infrastructure

AM26LV31EIRGYR Integrated circuit IC chip IC DRIVER DIFF QUAD LV HS 16QFN

Features

• Meets or Exceeds Standards TIA/EIA-422-B and ITU Recommendation V.11

• Operates From a Single 3.3-V Power Supply

• ESD Protection for RS422 Bus Pins

– ±15-kV Human-Body Model (HBM)

– ±8-kV IEC61000-4-2, Contact Discharge

– ±15-kV IEC61000-4-2, Air-Gap Discharge

• Switching Rates Up to 32 MHz

• Propagation Delay Time: 8 ns Typical

• Pulse Skew Time: 500 ps Typical

• High Output-Drive Current: ±30 mA

• Controlled Rise and Fall Times: 5 ns Typical

• Differential Output Voltage With 100-Ω Load: 2.6 V Typical

• Accepts 5-V Logic Inputs With 3.3-V Supply

• Ioff Supports Partial-Power-Down Mode Operation

• Driver Output Short-Protection Circuit

• Glitch-Free Power-Up and Power-Down Protection

• Package Options: SO, SOIC, TSSOP, VQFN

Applications

• Motor Drives

• Space Avionics and Defense

• Medical Healthcare and Fitness

• Wireless Infrastructure

• Factory Automation and Control
