AD536ASD / 883 IC RMS TO DC CONVERTER 14CERDIP

Electronic components AD536ASD AD536ASD/883 IC RMS TO DC CONVERTER 14CERDIP

Description:

The AD536A is a complete monolithic integrated circuit whichperforms true rms-to-dc conversion. It offers performance whichis comparable or superior to that of hybrid or modular unitscosting much more.

The AD536A directly computes the truerms value of any complex input waveform containing ac and dccomponents. It has a crest factor compensation scheme whichallows measurements with 1% error at crest factors up to 7. Thewide bandwidth of the device extends the measurement capabi-lity to 300 kHz with 3 dB error for signal levels above 100 mV.An important feature of the AD536A not previously available inrms converters is an auxiliary dB output. The logarithm of therms output signal is brought out to a separate pin to allow thedB conversion, with a useful dynamic range of 60 dB. Using anexternally supplied reference current, the 0 dB level can be con-veniently set by the user to correspond to any input level from 0.1 to 2 volts rms.

The AD536A is laser trimmed at the wafer level for input andoutput offset, positive and negative waveform symmetry (dc re-versal error), and full-scale accuracy at 7 V rms. As a result, noexternal trims are required to achieve the rated unit accuracy.

There is full protection for both inputs and outputs. The inputcircuitry can take overload voltages well beyond the supply lev-els. Loss of supply voltage with inputs connected will not causeunit failure. The output is short-circuit protected.

The AD536A is available in two accuracy grades (J, K) for com-mercial temperature range (0°C to +70°C) applications, and onegrade (S) rated for the –55°C to +125°C extended range. TheAD536AK offers a maximum total error of ±2 mV ±0.2% of
reng, and the AD536AJ and AD536AS have maximum errorsof ±5 mV ±0.5% of reng.

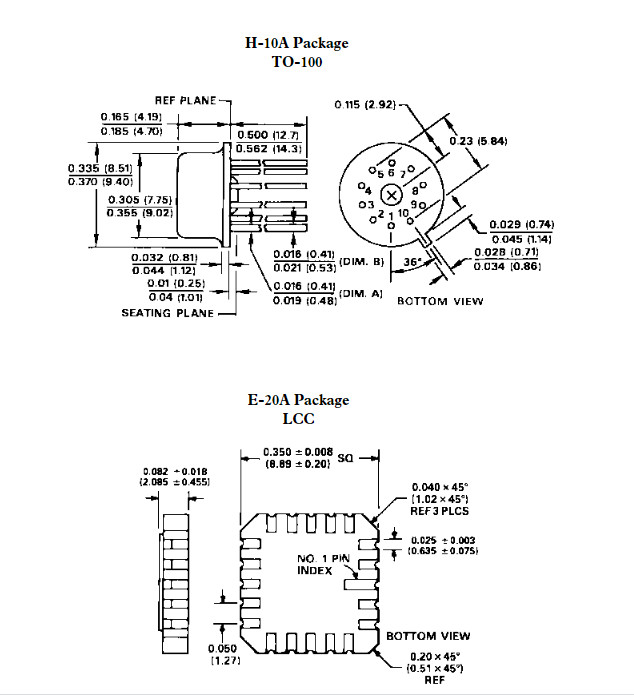

AD536A Package type :

More Similar products:

AD536AD AD536AJD AD536ATD AD536AKD AD536ASQ AD536AHD AD536ASH AD536SD AD536ASE AD536AH AD536AMH AD536ALH AD536AKQ AD536AKH AD536ATH AD536AJDZ AD536KD AD536A AD536SH AD536AJN AD536ASHZ AD536JD AD536AJQ AD536AJH AD536SE AD536AJG AD536AKDZ AD536AKN AD536ACH AD536AUH AD536BH AD536AJHZ AD536AKHZ AD536KH AD536JH AD536LH AD5360BST AD536CH AD536MH AD536TH AD536 AD536ASD883 AD536CJH AD536AJQZ AD536UH AD536H AD536JQ AD536BJH AD5361BST AD536AJD IC AD536ASH883 AD5363ACPZ AD536ASD/883 AD5360BSTZ AD5362BSTZ AD5363BSTZ AD536ASD883B AD5361BSTZ AD5363BCPZ AD536AJD/AKD AD536AJQ IC AD536SD/883 AD536ASH883B AD5362BCPZ AD536ASE/883 AD536ASH/883 AD536ASD/883B AD5361BCPZ AD536ASCHIPS AD5360BCPZ AD536ASD/883Q AD536ASE883B AD53604-03
