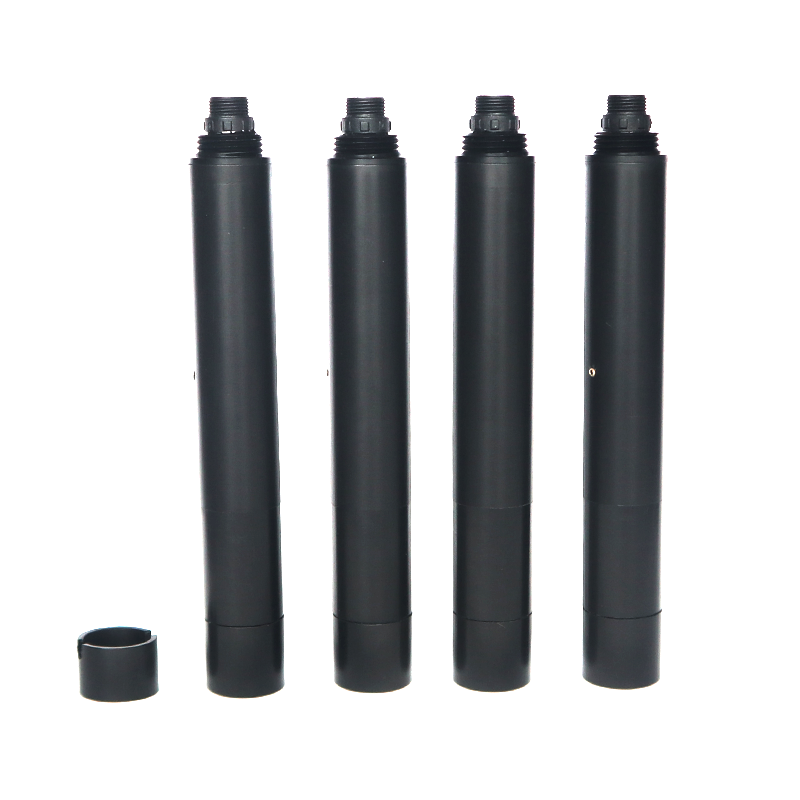

Customizable Oxidation Reduction Potential Sensor IP68 ,DC 12V digital orp meter

Customizable ORP online sensor with high service life and high precision IP68 DC 5~12V

item	value
Warranty	1 year
Customized support	OEM, ODM, OBM
Place of Origin	China
Brand Name	Xi'an Desun
Range	-999~999mV
Deepest depth	Underwater 30m
Protection level	IP68
Maximum operating pressure	6bar
Output signal	RS-485, MODBUS protocol
Power information	DC 5~12V, current <50mA
Probe cable length	10 meters (default), can be customized
Housing material	POM
Assembly	Input type
Temperature range	0~ 50°C

probe size

26x167.5 mm(Φ xL)

Power information

Power supply must be DC 5-12v + / - 5%, current < 50mA

Cable information

4 wire awg-24 or awg-26 shielding wire. Od = 5mm

wire

1. Red wire - power supply (VCC)

2. White line - 485 data (485 A)

3. Green line -- 485 data (485 B)

4. Black wire - ground wire (GND)

5. Bare wire - shielding layer

Application examples of orp sensor

• Wastewater plants
• Wastewater treatment
• Groundwater Monitoring
• Drinking water monitoring
• River monitoring
• Aquaculture
• Industrial waste water
• Industrial Grade Water Quality Monitoring
  Quality Assurance
  Our company guarantees to its 1st hand buyers that there will be no
  product deficiencies due to sub-standard materials or factory manufacture within
  there will be no product defects due to substandard materials or factory manufacture for a period of 3 months after dispatch. If the defect is found within the 3 month warranty periods
  we are committed to repaired or replace the defective product or refund the sum of the purchase price.
  product or to return the purchase price, subject to payment of initial shipping costs and related
  formalities. The repair or replacement of any product repaired or replaced within the warranty period will
  only be entitled to the remaining warranty period of the original product.
