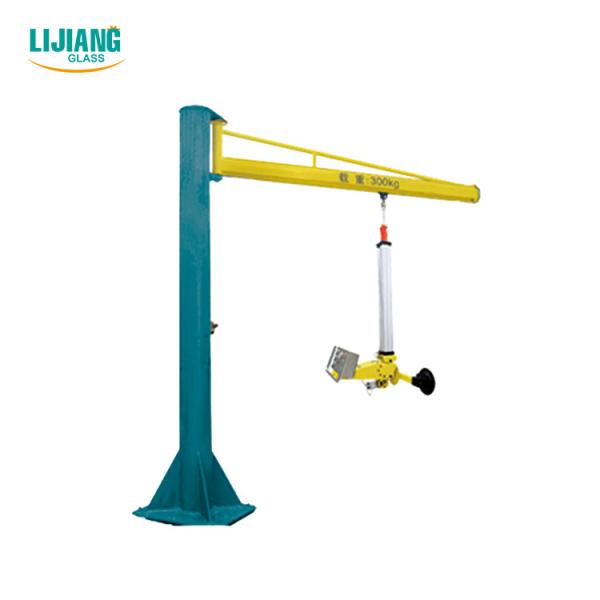

Insulating Glass Processing Cantilever Lift Crane With Suction Cups

Jib crane is common light lifting equipment in modern production.

It is fit for frequent lifting work of short distance between fixed positions.

It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance.

• It is operated by using compressed air instead of using electricity.
• When the compressed air stop , glass wont fall and broken, we guarantee a safe production.
• All pneumatic components, we use Japanese SMC brand, we use German SCHMALZ products for vacuum parts which is the most advanced technology of pneumatic and vacuum control in the world.
• Long distance of electric lift and down. Double speed control , guarantee fast speed , position accuracy and stability.
• Rotate and flip are 0-90°, the official load is 400 kg, but it can be used within 500-600 kg

500-600 kg

This machine is reliable and safe, easy to operate.

The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempering furnace, lamination glass and insulated glass.

This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.

Tech Parameters of Cantilever Lift Crane

LJGZ2020 Automatic desiccant filling machine

APPLICATION

The machine can automatically achieve actions of drilling holes automatically in the insulating glass spacing frames, filling desiccant and sealant. The control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. The machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

Main feature

n The filling height of can be adjusted according to the size of spacer frame

n Filling time can be adjusted

n Desiccant auto loading and replenish

n Auto drilling, filling and sealing function

n Germany Siemens PLC control system

n Touching screen interface, simple and visible

n Adding glue way is safe and easy

n Machine can fill the arc frame.(optional function)

n Can fill Molecular sieve diameter 1.0mm-1.5mm(optional function)

Main technical parameter

LJTB01 Automatic Butyl Extruder Machine

1. Touch-screen operation, simple and practical

2. Auto-measure the width of spacer, nozzle automatic positioning

3. Auto-centering and auto-clamping

4. The bigger wheel help to coat the arc frame

5. Coating nuzzle is Teflon brand ,non-stick coating

6. The coating speed is up to 47m/min,saving materials up to 30％,( 5g/m)

7. The crossbeam height is easy to adjust,we can control the height of butyl

8. The special part controls both sides of nozzle opening and closing at the same time

9. Alarm device when use out of butyl and easy to load butyl

10. Pre-heading function,set a regular time before working time

11. Glue cylinder Adopt the upright structure, easy to change butyl.

12. Automatic filter function Automatically filter debris, keep spreading evenly.

13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand

14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned

15. Pneumatic component Taiwan Airtac

16. Japan OMROM Relay

² Main components
