| Application: | LASER CUTTING |
| Applicable Material: | Acrylic, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Wood |
| Condition: | New |
| Laser Type: | CO2 Laser |
| Cutting Area: | 1800*1000mm, 1800*1000mm |
| Cutting Speed: | 0-64000mm/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, JPEG |
| Cutting Thickness: | 0-20 mm |
| CNC or Not: | Yes |
| Cooling Mode: | WATER COOLING |
| Control Software: | Hengzhong |
| Place of Origin: | Guangdong, China |
| Brand Name: | FanWen, Fanwen |
| Warranty: | 1 Year |
| Certification: | ce |
| After-sales Service Provided: | Online support, Video technical support |
| Blow air system: | Air pump |
| Power supply: | Ac220v 50HZ/60HZ |
| Accuracy: | 0.05mm |
| Transmission: | Hybrid servo motor transmission |
| Voltage: | 220v |
| Laser power: | 80w/100w/130w/150w/180w |
| Color: | white,purple |
| Power: | can be choosen |
| Packaging Details: | Whole film protection inside
Outside standard export wooden packing. |
| Port: | Guangzhou or Shenzhen |
| Supply Ability: | 3000 Set/Sets per Year |
| Price: | $9,050.00 - $12,000.00/Sets |
High precision camera recognition technology is used to
automatically find all kinds of image edge cutting lines or
positioning feature points.
Automatic camera positioning laser cutting machine in the work,
through the visual recognition system to the pattern into the
computer processing, can automatically identify and accurate, fast
positioning cutting, to avoid the user because of inaccurate
positioning caused by the waste of materials and time.
Fast and continuous cutting function, strong data processing
ability based on fine DSP technology, professional camera
recognition technology software and coordination of precision
mechanical components ensure accurate and high-speed cutting.
Equipped with a Canon 18-megapixel camera, the machine accurately recognizes the edges of various patterns, automatically generates cutting paths, and the error can be controlled within 0.02mm, with perfect cutting.

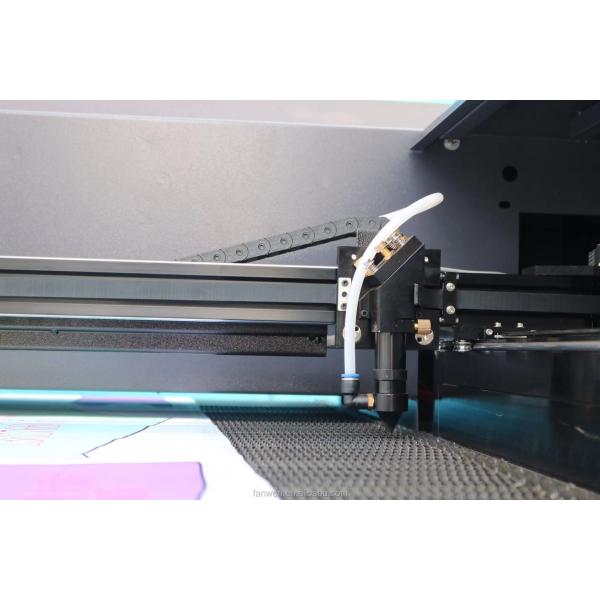

The laser head focusing lens adopts the lens imported from
Singapore, which is durable and has stronger beam stability and
safety protection head, avoiding the lens from being broken by high
temperature, and equipped with intelligent induction blowing and
accurate red light positioning system.
The CO2 laser tube has stable and fine light output, high
precision, smooth cutting surface without burrs, and the laser tube
has a high tolerance to bad environment dust, shock, temperature,
humidity and so on.
Let the machine control panel with a storage space can store files
to work offline, walking machine cutting can be synchronous display
panel cutting path, cutting speed, and need to cut the time of
calculation, the maximum minimum power at work, according to
comprehensive information such as cutting position can be arbitrary
location at any time, work can be start/pause, stop, and reset to
the machine, the USB interface is convenient to transmit data at
any time.
The use of new shape feed mesh belt instead of the traditional
shape feed mesh belt, herringbone mesh belt than the traditional
mesh belt is more solid, higher density, not easy to deformation,
so that the feeding is always accurate and stable.
Jl-5200 thermostatic cooling water tank is used to cool the laser
tube, so that the laser tube can be used for a longer and more
stable time. By controlling the cold coal solenoid valve, the
cooling quantity can be adjusted in real time to ensure the
stability and accuracy of the cooling system. With intelligent and
constant two working modes, suitable for a variety of environmental
temperature. Temperature over - temperature alarm, sensor fault
diagnosis function. With compressor over - load protection, water
flow alarm function.
It is mainly used for blowing air during cutting. The smoke and
dust generated during cutting can be blown to the air exhaust area
under the machine for convenient discharge.
High - power blower, for some materials cut smoke generation,
through the blower is very good smoke exhaust to the outdoor.
Automatic feed frame is made of fine steel cots, and equipped with
a driving synchronous motor system, synchronous system and the main
equipment connected to ensure that the speed of the feed frame,
time, track and feed mesh belt accurate synchronization, cloth
never pull phenomenon.
Whole film protection inside
Outside standard export wooden packing.
Dongguan FanWen industrial co., LTD. Is a collection of research
and development, production, sales in one of the diversified
enterprises, to provide agents to join, to support a nationwide
distribution. Since its establishment, it has established good
relations with many domestic and foreign enterprises. Its products
sell well all over the country and are exported to Europe, America,
southeast Asia, Middle East, Africa and other regions. The company
has advanced production equipment and professional technology, r &
d team, so that our products for our customers.
A:The machine is guaranted for one year,laser tube for 10 months
A:You can send samples to us at any time to cut,shoot video and send to you,or give similar samples for your reference.
A:You can contact us at any time online by E-mail,phone,WeChat and Wasapp.We will provide you with online video teaching or door-to-door service.
|
