Name: 2500pcsH Paper Die Cutting Machine 16kw 700mm Feeding
Brand: PRINTYOUNG
Price: 50000 USD

2500pcs/H Paper Die Cutting Machine 16kw 700mm Feeding

Categories	Paper Die Cutting Machine
Brand Name:	PRINTYOUNG
Model Number:	PRY-TL930RD
Certification:	CE
Place of Origin:	China
MOQ:	1 Set
Price:	US 50000 Set
Payment Terms:	L/C, T/T
Supply Ability:	20 Set/Sets per Month
Delivery Time:	45 days
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Voltage:	380V
Weight:	7500 kg
Production Capacity:	2500pcs/h
Max. workable width::	930*660
Max. sheet size(mm):	930*660
Max. collect pile height(mm):	160mm
Power rating(kw):	16kw
Paper range(g/㎡):	150g-2000g/㎡
Dimension(LWH):	412021002300mm
Warranty:	1 Year
Min. sheet size(mm):	400*300
Max. feeding pile height(mm):	700mm
Max. working pressure(N):	160*104 N
Air pump displacement(㎡/h):	40㎡/h

Contact Now

Add to Cart

Company Info.

Shanghai Printyoung International Industry Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

2500pcs/H Paper Die Cutting Machine 16kw 700mm Feeding

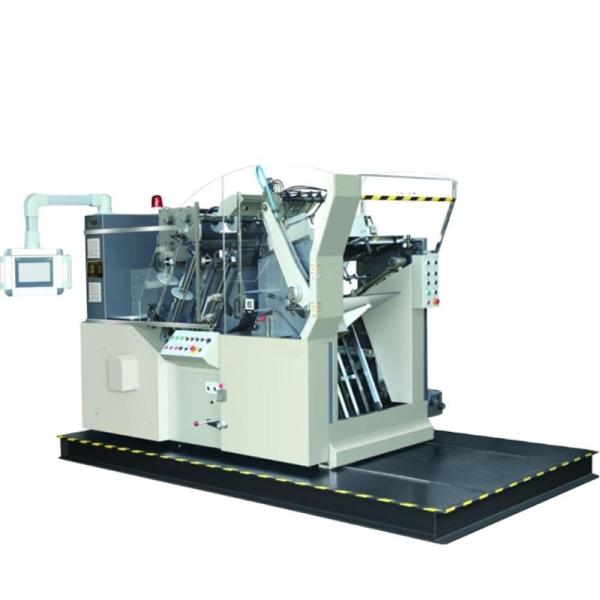

PRY-TL930RD Automatic Hot stamping die cutting machine

Introduction

The TL-930 RD automatic foil stamping and die cutting machine is
composed of four parts: main motor, hot stamping ,auto feeder and
electric equip. The machine is designed for hot stamping
,embossing, die cutting, hot cutting, creasing etc technology, it’s
suitable for paper, cardboard and all kinds of plastic film. To
meet the large area of stamping and embossing stamping molding
process. Using airflow stripped bodies to ensure that printing
products and foil separation.

Features

◆ The machine was converted into a machine that it can walk foil
vertical and horizontal . ◆ Feeding adopts cylinder to separate and
merge. ◆ Safety system is really reliable. ◆ Adjust the pressure
adopts servo motor driven, It can be adjusted on the touch screen,
and it can fun-turn, it also can adjust without stopping. ◆
Lubrication adopts oil pump, the oil can be recycled filter and
use. ◆ The main motor adopts alternating current inverter
controller .Starting and braking adopts pneumatic clutch device. So
that the machine can be operated in any cases freely. Also more
secure. 1.It is easy to operate the machine. Only put the paper
into the machine, and then press “on” button it can work. 2.It can
achieve the different shape, such as block, round, fan-shaped and
so on in one machine, only change the knife rest. 3.One worker can
operate one machine. 4.Guarantee terms: The seller guarantee the
machines are new (or unused) and the guarantee period will be given
12 (twelve) months which starts from the date of the machine's
arrival. During this period, the seller will provide free
maintenance and free spare parts that caused by the machine's
quality, but the buyer must pay the round trip tickets and
accommodation expenses for seller's technicians.

Technical Parameters

PRY-TL930RD Automatic Hot stamping die cutting machine
Model No.	PRY-TL930RD
Max. sheet size(mm)	930*660
Min. sheet size(mm)	400*300
Max. feeding pile height(mm)	700mm
Max. collect pile height(mm)	160mm
Max. working pressure(N)	160*104 N
Power rating(kw)	16kw
Air pump displacement(㎡/h)	40㎡/h
Paper range(g/㎡)	150g-2000g/㎡
Max. mechanical speed(s/h)	2500pcs/h
Machine weight(kg)	7500kg
Machine noise(db)	<77db
Electric power plate(kw)	9kw
Overall machine dimensions(mm)	412021002300mm
Vertical foil axle	2
Horizontal foil axle	2

Configuration

Applications

It’s suitable for paper, cardboard and all kinds of plastic film. To
meet the large area of stamping and embossing stamping molding
process. Using airflow stripped bodies to ensure that printing
products and foil separation.

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own
factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support
to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send
technicians (engineers) to your factory for installation and
training. You shall pay the round trip air fare and accommodations,
plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For
special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than
20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents
in South Africa, Morocco and Italy.
