Brand Name: | TIMMY |
Model Number: | TM-GP08L |
Certification: | CE, RoHS |
Place of Origin: | China |
MOQ: | 1pcs (sample) |
Price: | Negotiable |
Payment Terms: | T/T, , Payal |
Supply Ability: | 3000pcs per week |
Delivery Time: | Sample order 2~3 workdays; Bulk order 6~12 workdays |
Packaging Details: | Export packing: Outer Box /10 units 60*43.8*23(cm) G.W: 20 Kgs |
Camera: | Dual Cameras 2M Pixel HD Color; 2M infrared camera |
Display Size: | 8-Inch IPS Touch Screen HD800*1280 |
QR Code Scanner: | Support Georgia+CR+UK+EU DCC |
Face Capacity: | 50,000 |
Transactions: | 500,000 |
Card Capacity: | 50,000 (IC/ID) |
Operation System: | Linux System 3.10 |
Communication: | TCP/IP / Wi-Fi / USB Flash Drive |
Access Control Interface: | Lock Relay Output / Alarm Output / Exit Button |
Languages: | Support 20 country languages |
Temperature Measurement Distance: | Detection Range 0.5m |
Data Storage: | Cloud, Memory, Locally in machine or PC |

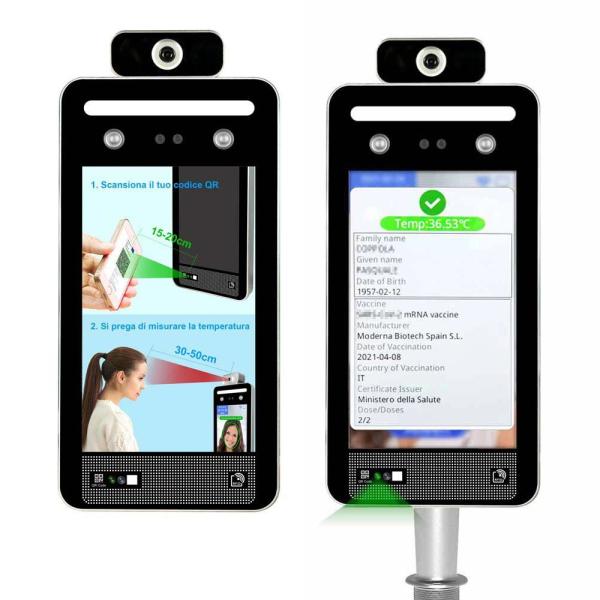

8 Inch IPS Qr Barcode Reader Face Temperature Measuring Machine
EU Green Pass Scanner Face Recognition Temperature Measurement Device
TM-GP08L is a newly launched model in ealrlier May of this year and
proved that it is quite successful and durable.
In according with the requirement of European Union, TM-DP08L is
available to scan the the digital green certificate or green pass.
As well as European Union, Costa Rico, UK and Georgia etc.
There are three ways to obtain an EU digital COVID certificate:
1) Vaccination
2) Recovered from a SARS-CoV-2 infection
3) Tested negative for COVID-19
EU Green Pass Scanner Temperature Reader Features:
1. The Green Pass code function can be enabled/disabled
2. The temperature measurement function can be enabled or disabled
3. Mask detection function can be turned on/off
4. Can achieve: QR code verification + temperature measurement +
mask detection + access control
5. Can achieve: QR code verification+ access control
6. Can set the number of vaccine injections (1~9) for access
control
7. Invalid code alarm, access control forbidden to pass
8. Alarm and access control is forbidden to pass if the patient is
cured beyond the validity period
9. If it is set to inject 2 doses to pass, then if 1 dose is
injected, the access control will alarm and prohibit passage.
10. Can switch the language and voice of EU nations automatically
and you can add translation at any time if there is no language
library
11. After the epidemic is over, it can return to the normal
professional face recognition access control and attendance
function
12. Firmware can be upgraded on-line automatically.
13. Can set the capture function, face recognition after saving
photos and can export photo files
14. Can export a record file in TXT format for other systems to use
or view identification records
EU Green Pass Scanner Specifications
Temperature Detection | Support |
Temperature Detection Method | Melexis (90614DCI) Single point temperature measurement Sensor |
Temperature Detection Range | 0.5 meters (Detection error: 0.5 ℃ ) |
CPU Processor | 1.2G Dual-Core ARM Cortex-A7 |
NPU Processor | NPU: 1200Gb (1.2 T) |
RAM | 512MB DDR3L |
ROM | 8GB eMMC |
Cabinet raw material | Metal case |
Camera | Dual SONY (IMX307) Cameras with 1/2.8" CMOS; Lens: 6 mm 2M Pixel HD Color; 2.1M (GC2145) infrared camera |
LED | LED Double high power infrared light |
Display | 8-inch HD IPS Touch Screen |
Resolution | 800*1280 |
Dimension | 266*132*20mm |
Exposure compensation | Under the strong light, sun light and back light, exposure compensation will be automatically |
Communication | Support LAN/wifi/u disk connection, support CS desktop version software, real-time data upload, cloud websocket |
FRR | <0.1% |
FAR | <0.001% |
Power supply | DC 12V, 1A~5A |
Operating system | LINUX 3.10 |
Language | 20 country of languages |
Face capacity | 50,000 |
Card capacity | 50,000 (IC/ID) |
Record Capacity | 500,000 |
Face Recognition Accuracy | 99.70% |
Identification stylel | Face, Finger,ID Card, PIN or combination, Green Pass QR Code |
Access Control | Interface output: Lock control , doorbell, U-Disk, Wiegand, relay,
alarm output. |
Identification Mode | 1:1, 1:N |
Face recognition time | <0.2S |
Intelligent function | Live face detection |
Detection range | 0.5-2.5m |
Magnetic door | support |
Alarm output | 1 set |
WG | 1 set WG In, out |
Network Communication | TCP/IP,C/S LAN, Wifi and USB flash drive |
Installation Environment | Indoor |
Desktop Software | AAS Version 6.8 |
Management Software | Desktop, Cloud, SDK, Mobile App |
SDK | Free SDK |
Face Recognition Temperature Scanner FAQ?
Q1: Are you a manufacturer or a trade company?
Reply : Shenzhen Union Timmy Technology Co., Ltd. is one of the
leading manufacturers and exporters. We are enjoying an excellent
reputation through 20 years’ production experience of time
attendance in China.
Q2: How many days can we get the products if placed purchase order?
Reply : In regularly, 1-3 working days for Sample and ready stock;
15 working days for production order after receiving order deposit.
Q3: Which payment method are acceptable?
Reply: T/T, PayPal, and L/C are available.
Q4: When did your company formed?
Reply : Since year 2000, the founders of Shenzhen Union Timmy
Technology Co., Ltd. (Timmy Technology) have been striving for
independent research and development of biometric verification
algorithms, vertical three roller gates, access control system,
one-card management system and the production of biometric
verification SDK which was initially widely applied in PC security,
time attendance and identity authentication fields.
Q5: Can I get some samples?
Reply: We are honored to offer samples for your evaluation.
Q6: Can we print Logo for OEM?
Reply: Logo printed and client customization are our expertise for
ordering at MOQ in 100pcs.
Q7: How does your factory do regarding QC?
Reply: Quality check is our first priority for our customers
without any careless.
Furthermore, Timmy Technology has been recognized as a "National
High-tech Enterprise" for 3 consecutive years, passed ISO9001
certification, and the products have passed FCC/CE/ROHS
certification, etc
Should you have any inquiry, feel free to contact us
![]() |
