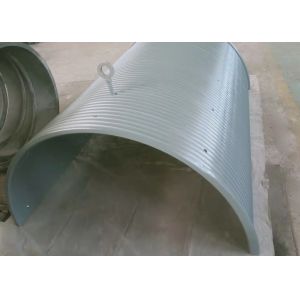

Wire Hoist Winch Lebus Sleeve Low Carbon Steel

lebus gooved winch Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Product Application

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch

3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

4. The building machinery: Building wipe wall winch, Winding hoist, Windlass

5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

The LeBus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.

Required Parameters:

• Wire rope diameter or cable diameter(mm)
• Inner diameter D1(mm)
• Outer diameter D2(mm)
• Width between the flanges L(mm)
• Rope capacity(m)
• Material:
• Rotation direction:left or right?
