Double PVC Jacket Electrical Cable Wire BVV 7 Stranded Copper

Categories Electrical Cable Wire
Brand Name: SHANCABLE
Model Number: BVV 7strands
Certification: ISO,CE,IEC,TUV,KEMA
Place of Origin: Shanghai, China
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Delivery Time: 10 Days
Packaging Details: Wooden Drum
Name:: PVC Insulation Electrical Wire Cable
Insulation Material:: PVC
Packing: 100m/roll or 100Yard/Coil
Conductor: Copper or CCA
type: insulated
Rated Voltage: 300/500V, 450/750V
Standard: 60227 IEC 53
Application: Lighting for building.
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

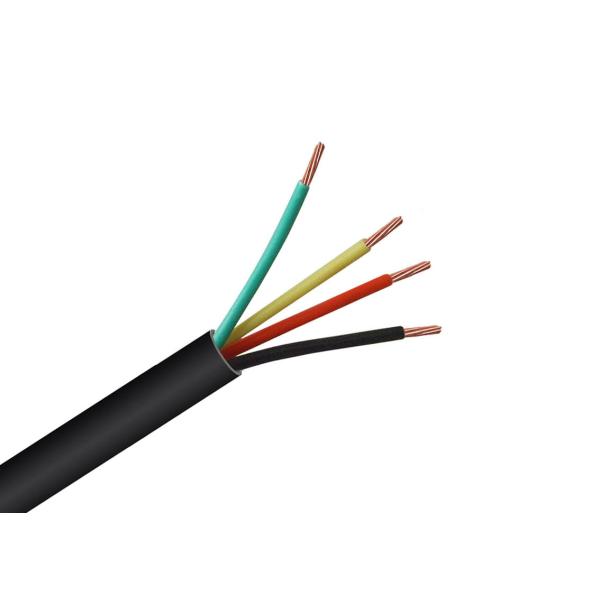

Double PVC Jacket Electrical Cable Wire BVV 7 Stranded Copper

7 stranded copper with double PVC Insulation PVC Jacket BVV Electrical Cable Wire. 2 - 5 Cores x1.5, 2.5 to 6sqmm


Applications


Used as fixed wiring cable of rated voltage 300/500V.
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

itemvalue
Place of OriginChina
Shanghai
Brand NameSAHN, OEM
Model NumberVV, VVR, VV32, VV62
Insulation MaterialPVC
TypeLOW VOLTAGE
ApplicationPower Station
Conductor MaterialCopper
JacketPVC
StandardIEC60502
CertificatesCE, RoHS, CCC, KEMA
Special requiremetsArmour, LSZH, Fire-resistant
Warranty2 years since delivery

Technical data


Rated voltage:300/500 V, 450/750V
Max. Conductor Temp. in normal use: 70℃
Min. Bending Radius: 4 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request


Descriptions


Light PVC Sheathed Cable for fixed wiring.
Code designation: 60227 IEC 10 (International), BVV 300/500V(China)
Constructions
① Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1
Plain circular stranded copper conductor, comform to IEC 60228 class 2
② Insulation: PVC/C
③ Inner Covering
④ Overall Sheath: PVC type ST4
Note: Insulation color as per standards or at request


BVV 300/500V


Nominal area of conductorNo./Dia. Of ConductorMax.O.DApprox.Weight
mm2mmmm2kg/km
2X1.5(A)2x1/1.3810.0109
2X1.5(B)2x7/0.5210.5123
2X2.5(A)2x1/1.7811.5157
2X2.5(B)2x7/0.6812.0172
2X4(A)2x1/2.2512.5205
2X4(B)2x7/0.8513.0222
2X6(A)2x1/2.7613.5265
2X6(B)2x7/1.0414.0286
2X102x7/1.3517.5471
3X1.5(A)3x1/1.3810.5136
3X1.5(B)3x7/0.5211.0146
3X2.5(A)3x1/1.7812.0190

BVV 450/750V


Nominal area of conductorNo./Dia. Of ConductorMax.O.DApprox.Weight
mm2mmmm2kg/km
3x2.5(B)3X7/0.6812.5207
3X4(A)3X1/2.2513.0252
3X4(B)3X7/0.8513.5272
3X6(A)3X1/2.7614.5344
3X103X7/1.3519.0574
4X1.5(A)4X1/1.3811.5164
4X1.5(B)4X7/0.5212.0174
4X2.5(B)4X7/0.6813.5252
4X4(A)4X1/2.2514.5321
4X4(B)4X7/0.8515.0346
4X6(A)4X1/1.0416.0470
4X6(B)4X7/2.7617.0439
5X1.5(A)5X1/1.3812.0192
5X1.5(B)5X7/0.5212.5205
5X2.5(A)5X1/1.7814.0272
5X2.5(B)5X7/0.6814.5292
5X4(A)5X1/2.2516.0397
5X4(B)5X7/0.8517.0418
5X6(A)5X1/2.7617.5518
5X6(B)5X7/1.0418.5550
