| Categories | Weigh In Motion Sensors |
|---|---|
| Brand Name: | Hengliang |
| Model Number: | X21 |
| Certification: | ISO |
| Place of Origin: | Zhenghou`China |
| MOQ: | 1 PCS |
| Price: | USD 6600-13200/PCS |
| Payment Terms: | T/T |
| Supply Ability: | 50 PCS/Month |
| Delivery Time: | 5~7days |
| Packaging Details: | Wooden box |
| Name: | weigh meter |
| Power Voltage: | AC220V 50Hz |
| Speed Range: | 0.5~105km/h |
| Error: | < ± 5% total weigh |
| Speed Error: | ≤ ±1km/h |
| Error of Axle Base: | ≤ ±100mm |
| Display: | Monochrome,320*240 lattice |
| Keyboard: | 12 thin film keyboard |
| Data Store: | 10000 vehicle data |
| Number of Lane: | ≤ 8 |
| Data Interface: | RS232 |
| Camera Trigger Mode: | Switch Trigger |
| Working Temperature: | -30~+70℃ |
| Material: | AL |
| Company Info. |
| Zhengzhou Hengliang Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

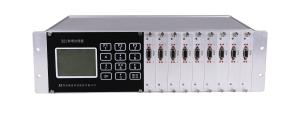

Highway Overload System & Digital Portable High Speed Weight Control Meter
The outdoor enclosure installed near the quartz weighing sensor in roadside, configure a station in each direction, process charge amplifier input signal, and form axle load, wheelbase, shaft speed ,models, gross weight and other information, at the same time transmit test data to high-speed preview computer in real-time.
Product Parameters
Voltage | AC 220V 50Hz |
Material | AL |
Display | Monochrome,320*240lattice |
Keyboard | 21 thin film keyboard |
Data Store | 10000 vehicle data |
Data Interface | RS232 |
Number of Lane | ≤4(6 rows sensor) |
Working Temperature | -40℃～75℃ |
Camera Trigger Mode | Switch Trigger |
Length*Width*Height | 483*225*133mm |
Function | It analyzes charge amplifier input signal, and concludes axle, wheelbase, axle speed, vehicle model, gross weight and other information |
|
