2mx1mx1m Gabion Mesh Basket Galvanized Double Twist Hexagonal Wire Stone Cage

Categories Gabion Basket
Brand Name: SHUXIN
Model Number: SX-211
Certification: ISO,CE,SGS,BV
Place of Origin: Hebei
MOQ: 100 PCS
Price: Negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS per week
Delivery Time: 5-8 work days
Packaging Details: Bundle
Name: Wire Mesh Gabion Box
Material: Galvanized wire, PVC Wire, Galfan Wire
Weave: Double Twist, Trible Twist
Mesh Wire: From 2.4mm to 3.4mm
Selvage Wire: from 3.0mm to 3.9mm
Biding Wire: common use 2.2mm
Mesh Hole: 60*80mm, 80*100mm, customized
Gabion Size: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 2*1*0.5m
Pakcage: In bundle ( after compression)
Zinc Coating: around 275g/sq.mt
Usage: Rive protection, Retaing wall, flood control
Features: easy installation, suitable for any terrain
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

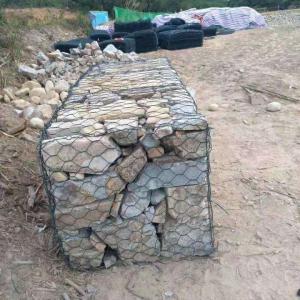

2mx1mx1m Gabion Mesh Basket Galvanized Double Twist Hexagonal Wire Stone Cage

Galvanized Double Twist Hexagonal Wire Mesh Gabion Basket Stone Cage for Africa


Gabion basket / Gabion Box's raw material is " galvanized iron wire " or " PVC coated iron wire " or " galfan ( high zinc coating ) wire ", these raw material can well anti - rust, to make sure gabion box can using a very long time under the sea water, to help you finish the project in a very high efficient way. To a certain extent, it also helps you save costs.


Gabion Basket Technical Data Sheet
MaterialQ195, Low Carbon Steel Wire
Weave TypeDouble Twisted
Hole ShapeHexagonal
Surface TreatmentHot Dipped GalvanizedPVC Coated
Mesh Hole80 * 100 mm60 * 80 mm80 *100 mm60 * 80 mm
Mesh Wire2.2 - 3.0 mm2.0 - 2.7 mm2.2 / 3.2 - 3.0 / 4.0 mm2.0 /3.0 - 2.7 / 3.7 mm
Selvage Wire3.0 - 3.9 mm3.0 - 3.7 mm3.0 / 4.0 - 3.9 / 4.9 mm3.0 / 4.0 - 3.7 / 4.7 mm
Lacing Wire2.2 mm2.2 mm2.2 / 3.2 mm2.2 / 3.2 mm
Gabion Basket Size1 * 1 * 1 m, 2 * 1 * 1 m, 3 * 1 * 1 m, 4 * 1 * 1 *1 m, etc

Features:

1. Easy to install, no special technology required.

2. 6 M/S strong anti - scour ability, able to withstand water, flow speeds up to 6 M/S

3. Good Ductility, no structural joints

4. High strength, withstand a wide range of deformation.
