2500kg Loading Puzzle Car Parking System With Multiple Vertical Levels

Categories Puzzle Car Parking System
Brand Name: ChangYue
Model Number: PSH2
Certification: CE ISO9001
Place of Origin: Shanghai, China
MOQ: 5 piece
Price: to be negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Unit per month
Delivery Time: 30-60 days
Packaging Details: Standard export packing
Type: PSH 2 levels mechanical puzzle parking system
Material: Steel
Dive mode: motor chain
Car size (LxWxH): 5000*1850*2050(SUV)/1550(sedan)mm
Loading Capacity: 2000kg/2500kg
Motor power: 2.2kW
Lifting speed:: 8m/min
Sliding motor power: 0.2kW
Sliding speed: 2.6m/min
Operation Mode: Touch screen / Push button or IC card
Power supply: 380V/50HZ 3 Phase 5 wires
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2500kg Loading Puzzle Car Parking System With Multiple Vertical Levels

PUZZLE PARKING SYSTEM


Characteristics

1. Motor driven with chain / steel rope lifting system.


2. Dependent & space saving with multiple vertical levels (2-6) .


3. Except the top level, each layer has a spare parking space and front-rear guide rails through which the platforms move horizontally.


4. The platforms on the top layer can only move up and down and the ground layer can only move horizontally and other platforms can move in both directions.


5. Safety hook device to prevent falling, collision and overload.


6. Photo electric sensors to check and stop the unit when cars parked improperly or when persons cross in by accident.


7. Emergency stop push button mounted on operation panel as well.


8. PLC automatic control system. Push button, touch screen and IC for convenient parking and retrieving process.


9. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.


Main Structure
  • Steel structure
  • Car Pallet
  • Lifting system
  • Sliding system
  • Hydraulic system
  • PLC control system
  • Safe-guard system

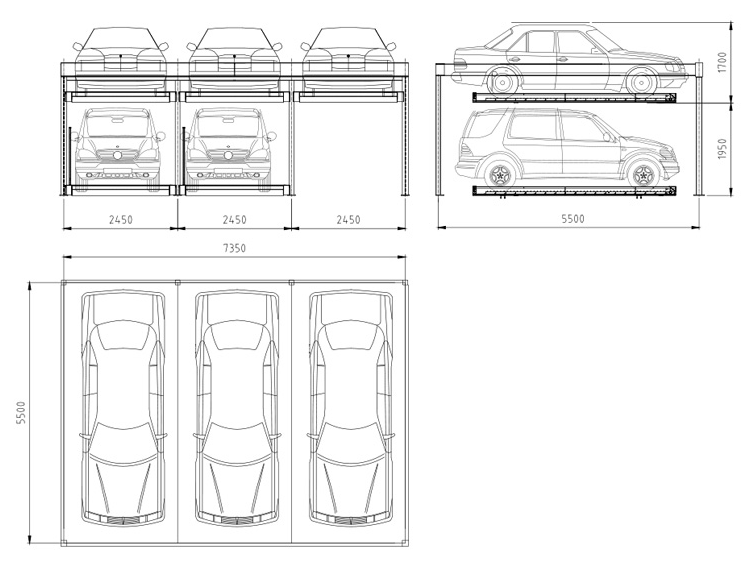

Drawing



Technical Parameters


ItemParameters
Product nameTwo Floor Puzzle parking system
Drive Modechain drive
Levels of system2
Size of car
(L*W*H)
5065*1860*1467 mm
Car Weight1800kg/2350
Operation ModeKeyboard / ID card / Manual
Lifting motor power2.2kw
Lifting speed4M/MIN
Sliding motor power0.2KW
Sliding speed4M/MIN
Control MethodTouch screen / Push button or IC card
Parking wayForward in, Back out
Electricity3 phases 5 wires, 380V, 50HZ
Safety devicesSafety lock device by electromagnetic and anti-falling protection device.
Malfunction indicationComputer malfunction diagnosis, human-computer communication information display
Parts appearance
treatment
Hot spray galvanized treatment and high-grade anti-corrosion painting
ControllerPLC, with control monitoring, IC card, manual and operative panel;
Way of parking in and
out
Forwarding in and forwarding out;
