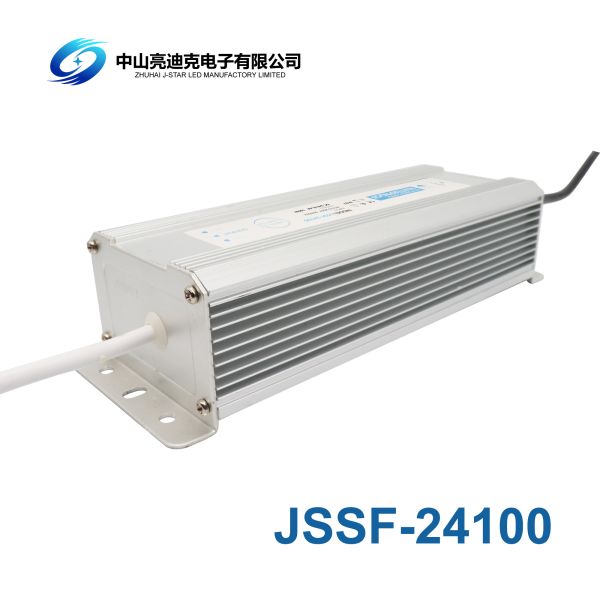

Outdoor IP67 LED SMPS 24V 100W with Aluminum housing

Outdoor IP67 LEDSMPS 24V 100W Three Years Warranty Mainly Working
On Projects

1. Built-in EMI filter
2. Low output ripple noise
3. ver load,over voltage,short circuit
4. CE&Rohs approval

Features:
Aluminum housing,100% waterproof,IP67 Efficiency:>80% 2 years
warranty OEM, ODM are acceptable

Model	12V100W IP67/ 24V100W IP67
Input	AC Voltage:	170-250V
	Frequency	50/60Hz
	AC current	1.05A
Output	DC Voltage	12V/24V ±0.5VDC
	Rated power	100W
	Current range	8.33A±1%
Protection	Overload	100% overloading
	Short circuit	Auto recovery
	Over voltage	≤255V
	Over temperature	≤80°C
Others	Waterproof rate	IP67
	Cooling	by convection
	Efficiency	>80%
	Housing materials	Aluminum
	Dimension(mm)	180(L)70(W)40(H)
	Weight	1.0kgs

For the lowest price and
the most detailed product parameters, please contact us, we will
reply in time.

Details Images

FAQ

Q1. Can I have a sample order for LED Power Supply?

A: Yes, sample order for testing and reviewing our quality is available. Mixed samples are acceptable.

Q2. What about the lead time? A: Samples order: 1-3 days, mass production time are normally in 25days after deposit.

Q3. What is your MOQ of the LED power supply? A: 50pcs or 100pcs for trial order.

Q4: How many year warranty of your Led driver? A: Two years.

Q5: OEM/ODM available:

A: 1. print logo on the sickers or LED powers.

2. Any request on the power supply, we can help you to design and put it into production.

Q6: What kinds of certificate we achieve?

A: CE, ROHS, FCC.

Q7: How to ship these goods?

A: By airline or by sea.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%. Secondly, during the guarantee period, we will send new power supply with new order together. For defective batch products, please send the pictures or videos for them, if possible, we can discuss the solution according to real situation.

Product Tags:


*From:	Your email address is incorrect!
*To:	ZHUHAIJ-STAR LED MANUFACTORY LIMITED.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Waterproof LED Power Supply
Brand Name:	J-STAR
Model Number:	JSSF-24100 B2
Certification:	CE ROHS SAA CB
Place of Origin:	CHINA
MOQ:	10
Price:	Welcome your inquiry
Payment Terms:	T/T, Western Union, D/P, D/A, L/C
Supply Ability:	1000000
Delivery Time:	10-15DAYS
Packaging Details:	white inner box and carton
Materials:	Aluminm
Ouput cable:	single output cable
DC Value:	24v 100W
DC Current:	4.1A
