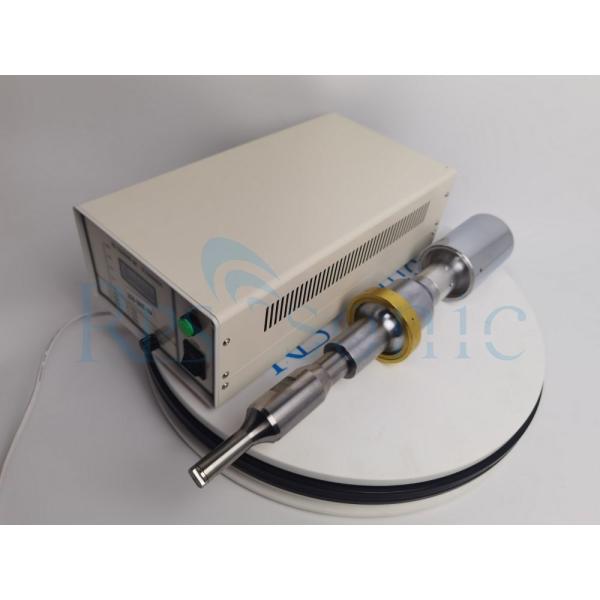

Titanium Alloy 1000watt Ultrasonic Extraction Equipment For Plant Essential Oil

20Khz 1000w Ultrasonic extraction equipment for Plant essential oil extraction

Parameter

Description

Ultrasonic plant essential oil extraction equipment/extraction machine Principle

l Ultrasound is an effective means to destroy cell structure. This effect can be used to extract substances in cells. For example, starch is extracted from the cell matrix.

l Ultrasound produces alternating high and low pressures in the exposed liquid. During the low-pressure cycle, the ultrasonic generates small vacuum bubbles in the liquid, and the vacuum bubbles violently burst during the high-pressure cycle. This appearance is called cavitation. The implosion of cavitation bubbles causes strong hydrodynamic shear.

l Shear force can decompose fibers and fibrous materials into cell particles and destroy the structure of the cell wall. This releases substances inside the cell, such as starch and sugar, into the liquid. In addition, the cell wall material is broken into small pieces.

l This effect can be used in the fermentation, digestion and other conversion processes of organic matter. After micro-grinding and grinding, ultrasound causes more materials in the cells to be converted, such as starch and cell wall fragments into sugar and enzymes, respectively. It also increases the surface area exposed to enzymes during liquefaction or saccharification. This usually increases the speed and yield of yeast fermentation and other conversion processes, such as increased ethanol production from biomass.

l The cell structure is broken down by ultrasonic (lysis) to extract compounds in the cells of inactivated microorganisms.

l When the liquid is treated with high-intensity ultrasound, the sound waves propagating into the liquid medium will produce alternating high-pressure (compression) and low-pressure (sparse) cycles, the rate of which depends on the frequency. During the low-pressure cycle, high-intensity ultrasound will create small vacuum bubbles or voids in the liquid. When bubbles reach a volume where they can no longer absorb energy, they collapse violently during the high-pressure cycle. This phenomenon is called cavitation. During the explosion, the local area will reach very high temperature (about 5,000K) and pressure (about 2,000atm). The collapse of cavitation bubbles also causes the liquid jet to reach a velocity of up to 280 m/s, and the resulting shear force mechanically destroys the cell membrane and improves material transfer. Depending on the ultrasound parameters used, ultrasound has a destructive or constructive effect on cells, depending on the ultrasound parameters used.

Features

Compared with conventional extraction technology, ultrasonic extraction is fast, inexpensive and efficient.

Compared with the water boiling and alcohol precipitation process, ultrasonic extraction has the following outstanding features:
1. No need for high temperature.

2. Atmospheric extraction, good safety, simple operation and convenient maintenance.

3. High extraction efficiency.

4. Has a broad spectrum. Wide applicability, most of the various components of Chinese medicinal materials can be extracted ultrasonically.

5. Ultrasonic extraction has little relationship with the properties of the solvent and the target extract.

6. Reduce energy consumption.

7. The processing capacity of medicinal materials is large, which is doubled or several times higher, and there are few impurities, and the effective ingredients are easy to separate and purify. 8. The extraction process has low cost and significant comprehensive economic benefits.

R-Responsibility P-Products S-Service

sale the right products instead of the expensive one

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

And we have the Professional import and export company， HangZhou LanBen Trade Co., Ltd, can export to any country wordwide.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.

The same to generator, Unreasonable operation may shorter the use-life of ultrasonic generator. So we have to make technical inquiry before operate ultrasonic welding machine. The key point of ultrasonic machine is resonance, only keep every part in resonance can make the system in best work environment.

Till now , we still have a lot of Branson /dukane/ rinco/ herrman telsonic welding machine, so that we can confirm every transducer/generator we made can matching to the original machine.

Of course we can make the transducer/generator replace for Branson /dukane/ rinco/ herrman telsonic welding machine, we can also make transducer/generator for any application of your ultrasonic equipment. We supply OEM service for oversea customers, we already have OEM customer in USA and German.

If you have any problem in ultrasonic area, welcome contact Rps-sonic.
