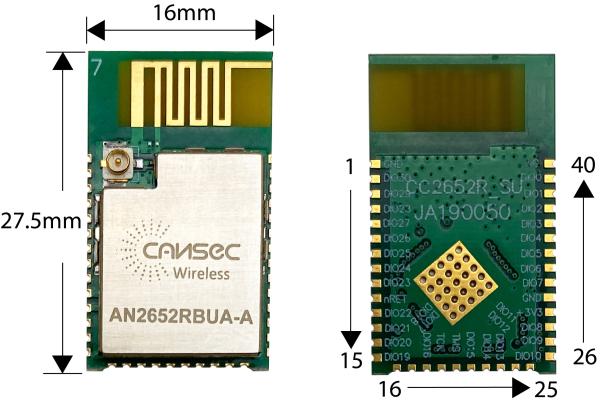

TI CC2652 RF 2.4 Ghz Wireless Transceiver Module AN2652RBUA-A

Wireless AN2652RBUA-A smart home products wireless rf transceiver module

The CC2652R device is a multi-protocol wireless 2.4GHz MCU for Thread, Zigbee®, low-power Bluetooth® 5, IEEE 802.15.4g, IPv6-capable smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including TI 15.4-Stack.

The CC2652R device is a member of the SimpleLink™ MCU platform for cost-effective, ultra-low power, 2.4GHz and sub-1GHz RF devices. Very low active RF and microcontroller (MCU) current and sleep currents below 1μA and parity-protected RAM retention of up to 80KB provide excellent battery life and support energy harvesting on small coin cells Long-running work in the application.

Features

Microcontroller
– Powerful Arm® Cortex®-M4F Processor
– Clock Speed Up to 48 MHz
– 352KB of In-System Programmable Flash
– 256KB of ROM for Protocols and Firmware
– 8KB of Cache SRAM (Available as GeneralPurpose RAM)
– 80KB of Ultra-Low Leakage SRAM
– 2-Pin cJTAG and JTAG Debugging
– Supports Over-the-Air Upgrade (OTA)
• Ultra-Low Power Sensor Controller With 4KB of
SRAM
– Sample, Store, and Process Sensor Data
– Operation Independent From System CPU
– Fast Wake-Up for Low-Power Operation
• Peripherals
– Digital Peripherals Can be Routed to Any GPIO
– 4× 32-Bit or 8× 16-Bit General-Purpose Timers
– 12-Bit ADC, 200 kSamples/s, 8 Channels
– 2× Comparators With Internal Reference DAC
(1× Continuous Time, 1× Ultra-Low Power)
– Programmable Current Source
– 2× UART
– 2× SSI (SPI, MICROWIRE, TI)

– I2C
– I2S
– Real-Time Clock (RTC)
– AES 128- and 256-bit Crypto Accelerator
– ECC and RSA Public Key Hardware Accelerator

– SHA2 Accelerator (Full Suite Up to SHA-512)
– True Random Number Generator (TRNG)
– Capacitive Sensing, Up to 8 Channels
– Integrated Temperature and Battery Monitor
• Low Power
– Wide Supply Voltage Range: 1.8 V to 3.8 V
– Active-Mode RX: 6.9 mA
– Active-Mode TX: 9.6 mA
– Standby: 0.94μA
• Radio Section
– 2.4-GHz RF Transceiver Compatible With
Bluetooth 5 low energy and IEEE 802.15.4 PHY and MAC
– Excellent Receiver Sensitivity:
–100 dBm for 802.15.4 (2.4 GHz),
–105 dBm for Bluetooth 125-kbps (LE Coded PHY)
–Output power up to +4 dBm
