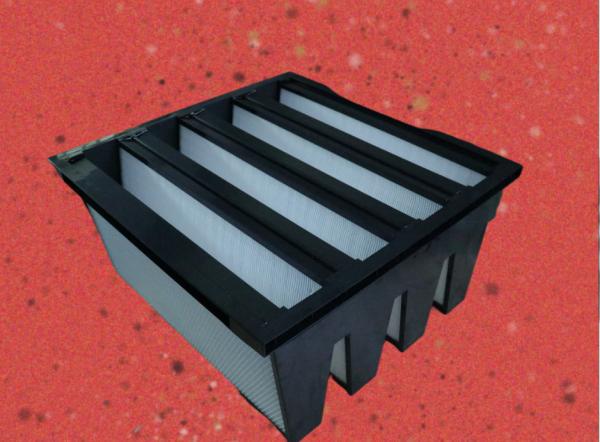

ABS Frame MERV 13 Hepa Media Filter , Pocket Bag Filter For HVAC System

Black/ABS V Bank Filter Pleated HEPA Air Filters HVAC System With Plastic Frame​

Applications:

The FloMax HVAC Air Filters are used in high efficiency final filtration in air conditioning systems, where very high airflow required.

Specifications:

Other sizes is available!

Description:

• Media: Polypropylene or glass fibre paper
• Separator:Hot-melt beads
• Frame: GI;Plastic
• Efficiency range from F9 ,H10,H11,H13(EN 1822)
• Initial resistance: 110 Pa
• Recommended final pressure drop : 600Pa
• Humidity resistance: 100%
• Max Temperature: 80 ℃
• Sealant: Polyurethane rubber PU
• DIN 53438 Flammability: F1
• UL 900 Standard : Class 2
• Max.air flow rate: 125% of rated air flow
• Gasket: one piece half round continuous gasket
• Available in Box or Single flange type.

Competitive Advantage:

• Ensure a long operation reliability and high dust holding capacity
• High air flow rates, up to 5000 m3/hr
• Low initial resistance.
• Tested in accordance with EN 1822
• Low energy consumpation

Located in Liaobu Town of Dongguan City, an international industrial manufacturing center, LESITE Hardware Co., Ltd. is an enterprise integrating R&D, production, sale and processing.

LESITE has specialized in air filter for 15 years and provided one-stop total solutions for processing of air filter and its accessories and efficient production of filter.

Lesite is one of enterprises first engaging in independent R&D, production and sale of air filter. LESITE Mechanical, subordinate to LESITE , is a famous air filter manufacturer at home and abroad and has become a leading force in the Chinese high-end filter industry

LESITE has persisted in innovation and honorably
gained many patents.
LESITE Mechanical fills in the gap of the industry
and leads industry development with wisdom and efforts.​
