W013587557 Firestone Ride Rite 4NPT Contitech Air Spring FD530-35530

Categories Contitech Air Spring
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Guangzhou, China
Brand Name: AIRSUSTECH
Certification: ISO/TS16949, ISO9001
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 2B7557
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Air Inlet: 1/4NPT
Top Plate Hole/Stud: M12X1.75 and M18X1.5
Bottom Plate Hole/Stud: 2xm12X1.75
Top Plate Dia: 289 mm
Bottom Plate Dia: 289 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 38*38*22 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Suspension Spring
N.W.: 7.7 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W013587557 Firestone Ride Rite 4NPT Contitech Air Spring FD530-35530

Fd 530-35 530 Contitech Air Spring W013587557 Firestone Double Convoluted Air Bag


AIRSUSTECH 2B7557 Cross OEM replaces Fd 530-35 530 Contitech :

OEM referenceNumberManufacturer ReferenceNumber
Firestone Bellows Number0233-02Reyco part number19983-01
Firestone part numberW01-358-7557,
W013587557,
W01 358 7557
Reyco part number(21AR,74AR)
ContiTech161388Suspension of supplier: SAF Holland90557203
ContitechFD 530-35 530 ;
FD53035543;
FD 53035 543
Histeer10316
Goodyear Bellows Number578923356;
578 92 3 356;
578-92-3-356
SAF Holland90557203
Goodyear part number2B14-383 ;
2B14476,
2B14 383
Watson&ChalinAS-0089
Twthill1998301
Triangle part number6412Suspension of supplier: SAF HollandFSIP OEM: W016756799
Triangle Bellows Number4530

Also known as: 75374, FD530-35CI1/4NPTOS
Compatible with: W013586810, W01-358-6810, WO13586810, WO1-358-6810
FD 530-35 CI 1/4 NPT OS,


Size of AIRSUSTECH 2B7557 replaces Fd 530-35 530 Contitech ​:


Loading Capacity at 20 psig: 2,040 lbsf

Loading Capacity at 60 psig: 6,120 lbsf

Loading Capacity at 90 psig: 9,180 lbsf

Operating Temperature: 57Cº to -54Cº


Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M12X1.75

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M12X1.75

Screw Center Distance of Bottom Cover Plate : 159 mm


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud


Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm


Rubber Bellows

Rubber Bellows MAX Diameter : 406 mm

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 391 mm

Working Stroke : 287mm


Bumper block / Buffer block

With Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Overall weight with clamped plates 7.7 kg


bellows type industrial air spring, double scroll, effective area 530cm square, maximum stroke 35cm, crimped pressure plate, internal thread, 1/4 NPT, offset
Compressed height
3.03"
Maximum expansion height
15.4"
The maximum diameter
15.9"
Maximum inflation pressure
120 psi
Maximum stroke
12.37"
Inlet type
Imperial
Air inlet
1/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Double convolution
weight
17 pounds


Vibration isolation - dynamic characteristic values

Design height H: recommended 285mm, minimum 265mm

Pressure p [bar] 345678 Vol V [l]

Additional types on request Force (Load) [KN] 18.7 25.1 31.6 38.2 44.6 51.2

Spring rate [N/cm] 1770 2250 2700 3180 3640 4100

Natural frequency [Hz] 1.5 1.5 1.5 1.4 1.4 1.4

Pneumatic application - static characteristic values

Force F [kN]

Pressure p [bar] 345678 Vol.( l )

Height H [mm] 320 14.9 20.4 25.9 32.0 37.6 43.7 26.0

280 18.5 24.5 31.0 38.1 45.0 51.7 23.2

240 21.1 28.0 35.5 43.3 50.3 57.9 20.5

200 23.1 30.7 38.5 47.1 54.8 62.8 17.5

M160 24.8 33.1 41.3 50.4 58.4 67.2 14.1

120 26.2 34.8 43.4 52.9 61.5 70.6 10.8


The drawing and data of AIRSUSTECH 2B7557 air spring:

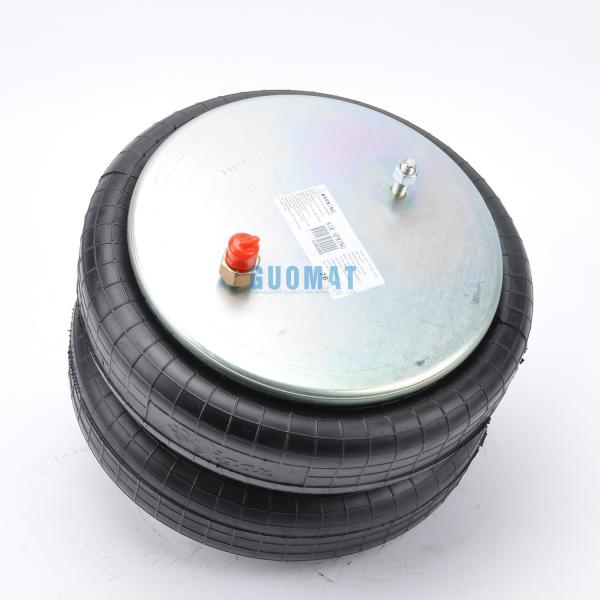

Fd 530-35 530 Contitech Air Spring W013587557 Firestone Double Convoluted Air Bag for Twthill 1998301

Fd 530-35 530 Contitech Air Spring W013587557 Firestone Double Convoluted Air Bag for Twthill 1998301

Fd 530-35 530 Contitech Air Spring W013587557 Firestone Double Convoluted Air Bag for Twthill 1998301
Fd 530-35 530 Contitech Air Spring W013587557 Firestone Double Convoluted Air Bag for Twthill 1998301


China W013587557 Firestone Ride Rite 4NPT Contitech Air Spring FD530-35530 factory
