● 300mm/sec low noise, high speed printing.
● Low power consumption and low operating cost.
● 83mm large capacity paper bin.
● Visual LED indicator lights, real-time prompts for power, error,
and paper shortage.
● Support free adjustment of 58, 80, 83mm printing paper (adjusted
by partition)
● Simplified/traditional can be freely converted by instructions

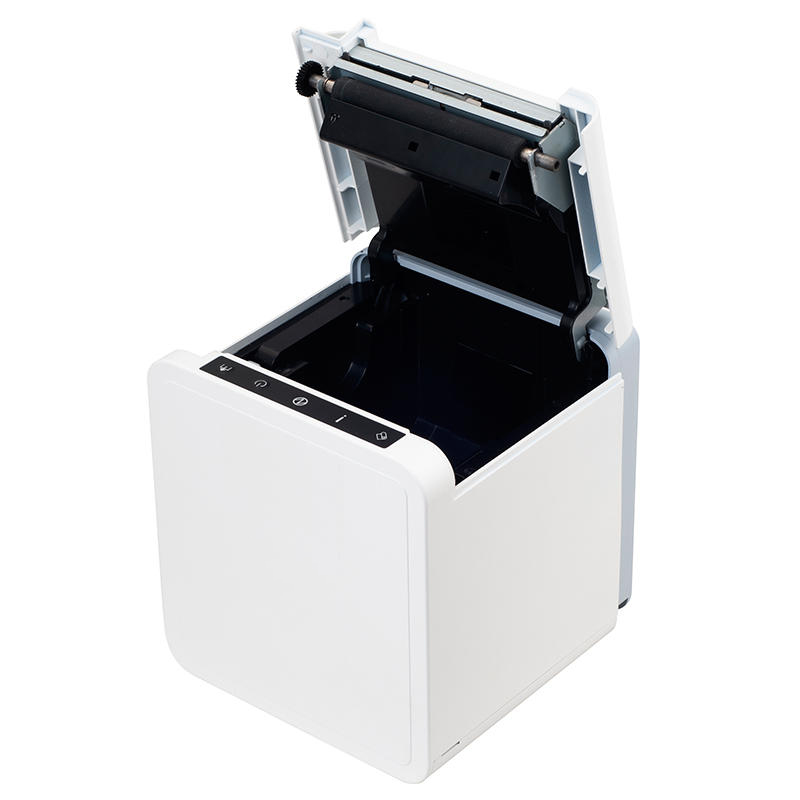

This Thermal Receipt Printer features a small size, light weight,
simple connection, easy operation and maintenance and reliable
performance. This Thermal Receipt Printer offers 300mm/s high
printing speed. Simple and elegant, with high optical mirror and
sticks appearance.
Specification:
| Printing |
| Printing method | Direct thermal |
| Paper width | 58/80/83±0.5mm |
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm |
| Column capacity | 576 dots/line/ 512 dots/line (adjustable by command) |
| Printing speed | 300 mm/s Max. |
| Interface | USB+Serial+Lan (Optional:Bluetooth/WIFI) |
| Line spacing | 3.75mm (Adjustable by commands) |
| Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns
or 64 columns/ |
| Chinese,traditional Chinese - 21 columns or 24 columns |
| Character size | ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots)
Chinese,traditional Chinese:3.0×3.0mm(24×24 dots) |
| Cutter |
| Auto cutter | Partial |
| Barcode Character |
Extension character
sheet | PC347(Standard
Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West
Europe,Greek,Hebrew,East
Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),PC858,IranII,Latvian,Arabic,PT151(1251) |
| 1D Barcode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D Barcode | QR CODE / PDF417 |
| Input buffer | 2048 Kbytes |
| NV Flash | 256 Kbytes |
| Power |
| Power adaptor | Input:AC 240V, 50～60Hz Output: DC 24V/2.5A |
| Printer input | DC 24V/2.5A |
| Cash drawer output | DC 24V/1A |
| Physical characteristics |
| Weight | 1.1 Kg |
| Dimensions | 130*140*133 mm(D*W*H) |
| Environmental Requirements |
| Operation environment | Temperature (0～45℃) humidity(10～80%) |
| Storage environment | Temperature(-10～60℃) humidity(10～80%) |
| Reliability |
| Cutter life | 2 million cuts |
| Printer head life | 150 KM |
| Software |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/Linux/Android/Mac/OPOS |
| Utility | Windows & Linux test Utility |
| SDK | iOS/Android/Windows |
1. Compact appearance, easy to carry, clear printing effect,
compatible with various printing software
2. No ribbon printing, no ink, no ribbon box, no ribbon, clean and
environmental protection
3. Intelligent Bluetooth one button printing paperless bin cover
dust and paper jam proof design
4. It is suitable for supermarkets, restaurants and other
industries
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
POS Terminal,Touch Screen Monitor,Thermal Printer,Barcode
Scanner,Cash Drawer
3. why should you buy from us not from other suppliers?
We have experience in the development car electronics and all in
one pos products. Our products range incluseds POS, TOUCH/HDMI
MONITOR/,CAR MONITOR, HUD, Headrest PC. For the small quantity
project, we are avialble for the fast feedback and customerized.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western
Union,Cash,Escrow;
Language Spoken:English,Chinese
Auto Cutter 260mm Speed Portable Bluetooth Receipt Printer 100KM Head Life
