Categories | LED Explosion Proof Light |
---|---|
Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, C-tick, PSE, RoHS, Saa |
Packaging Details: | Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF 3-5 days for samples after payment |
Supply Ability: | 1000 Piece/Pieces per Week |
Price: | $200.00 - $240.00/Pieces |
Model Number: | R EP-L-80 |
Product Weight(kg): | 11 |
Lamp Luminous Flux(lm): | 8000lm |

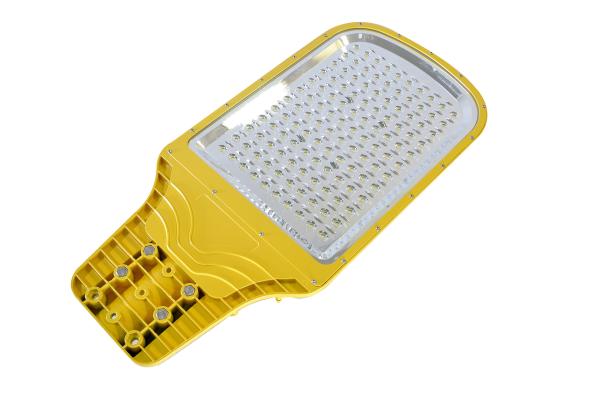

Product Name: | Anti-corrosion construction site paint booth and emergency use 80w explosion proof pole installed led street type light |
Power: | 80W |
Material: | Die Cast Aluminum |
DRIVE CURRENT: | 350 mA |
Power Factor: | 0.98 |
Warranty: | 5 Years |
Application: | Gas Station/chemical industries/airport/warehouse/marine |
Port: | TIAN JIN |
The Incoplas LED Hybrid is a durable multi-purpose and corrosion-resistant LED lighting solution that can be used in heavy industrial applications where hazardous location lighting is required.
This fixture can replace 100W and 250W metal halide lamps.
The Hybrid uses thermally conductive engineered polymers to extract heat away from the light source and its natural convection allows for maximum thermal performance while minimizing energy costs.
ITEM NO. | RLEP-J40 | RLEP-J100 | RLEP-J200 |
TOTAL POWER | 30w | 100w | 185w |
Replace HPS | 150w | 300-350w | 700-1000w |
Dimension | 200*200*270mm | 300*300*175mm | 400*400*185 |
Weight | 4KG | 7.5KG | 12KG |
Reflector/ wide angle | 120 | wide angle | wide angle |
Nominal lumens | 3480lm | 11600lm | 20880lm |
Driver Current | 350mA | ||
# OF LEDS | 24 | 84 | 156 |
System Efficacy | 116 LM/W | ||
Light Color option | 5700/4000/2700K | ||
Materia | Die Cast Aluminum | ||
Wide AC input | 90-305 VAC | ||
Power Factor | 0.98 | ||
Total Harmonic Distortion | < 10% | ||
Surge protection | IEC/EN 61000-4-5 | ||
Operation temp | -30 ºC to +50 ºC | ||
IP class | 68 | ||
Rated Life | 100,000+ hrs | ||
Warranty | 5 years | ||
Certificate | ROHS CE DLC ATEX SAA PSE C-TICK |
![]() |
