Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant

Categories Single Pass RO System
Brand Name: LEADER-T /OEM
Model Number: LD-RO500LPH
Certification: CE,ISO9001,ISO 14001
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set /Month
Delivery Time: 7-15 Days
Packaging Details: Wooden/ Box
product name: 500Lph Water Filter System Drinking Water Treatment machine RO Plant Price
output: 500lph
Productivity: 500LPH
Capacity: 100-1000000LPH
Packing: Wooden Box
Core Components: RO Membrane
After-sales Service: Video technical support, Field installation
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant

500Lph Water Filter System Drinking Water Treatment machine RO Plant Price


Features:

  • automatic operationand manual operation are available.
  • Multi-stage pretreatment can prolong the life of membrane.
  • Simple operation,automatic continuous water production.
  • Real-time online monitoring of raw water quality and purified water quality.
  • Automatic standby when the raw water is short of water and the water tank is full.
  • Low voltage protection,high voltage protection,short circuit protection and over load protection.

Application:


  • High quality drinking water for residential quarters
  • Purified water production plant
  • Raw material water for the food industry
  • Water preparation for dairy, beverage and wine industry
  • Water for the chemical industry
  • Boiler water for the power industry.

specification


Configuration list
ConfigurationMaterialSPECBrand
TankFRP1054Domestic
Value/AutoDomestic
Filterquartz sand12-20 meshDomestic
Active Carbon600-1100Mg/gDomestic
Resin/Domestic PUROLITE,Rohm Hass
Ro membranceCellulose acetate membrane,element4040DOW
Controlling System/PLC ,Maunal,Electric controlDomestic,Siemens
Pipe/Valuess304DN15-DN150Domestic
PumpSS/Iron/CopperCNP,Grundfos
OptionalCustomize the design according to the customer's URS
ApplicationDrinking, cleaning, beverage, industrial and mining enterprises and so on.

specification


water capacity500L/H
Power voltage380V / 50Hz
Rated power2.75Kw
Raw water pressure0.15mpa~0.5mpa
Raw water temperature5~35
operating pressure0.6mpa~12mpa
pressure of supply water0.2mpa~0.3mpa
environment temperature5℃~35℃
disinfection methodultraviolet disinfection

Flow chart

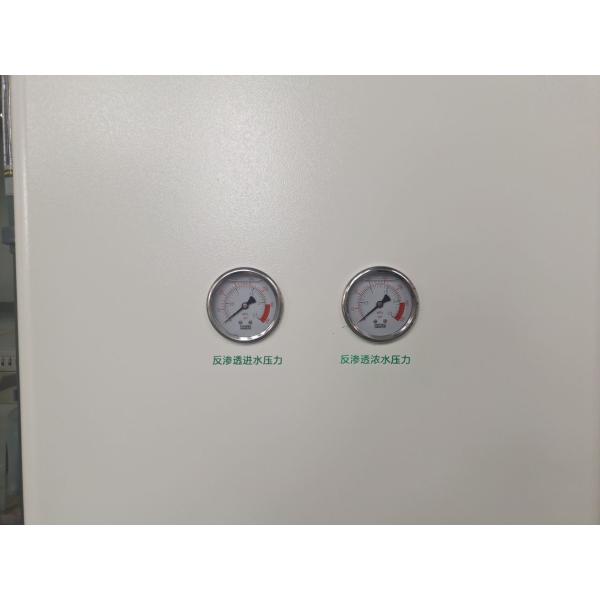

Pictures





China Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant factory
