| Categories | Vacuum Suction Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5087GYK |
| Certification: | CCC,ISO,BV,SGS |
| Place of Origin: | Suizhou, China |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Units/Month |
| Delivery Time: | 30-35 Working Days |
| Packaging Details: | Naked packing, Ro-ro, Bulk Ship |
| Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc. |
| Drive Model: | Right Hand Drive & Left Hand Drive |
| Wheelbase: | 3800 mm |
| Engine Power: | 170HP |
| Tank Size: | 15cbm, 16cbm, 18cbm, 20cbm, 22cbm, 24cbm, etc. |
| Tank Material: | 6mm Carbon Steel |
| Vacuum Pump: | Chinese Brand, or famous international brand |
| Sewage Suction Pipe: | 8m |
| Suction Time: | <5min |
| Effective Suction Range: | >8m |
| Logo and Pattern: | as Customer's Request |
| Warranty: | 1 Year |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
Truck Chassis Advantage:
- High Quality Chassis Series-FOTON Aumark;
- Good Quality Yuchai or Cummins Engine in 180HP ~220HP;
- FAST Gearbox Suppling large powe Output in Big Speed Ratio;
- High Speed Gear with Low Fuel Consumption.
Sewage System Advantage:
- Large volume sewage tank 8000L with High Pressure Design;
- 4000L Wate with Side Installed Design Low Gravity Center;
- Famous Italian Jurop &BP, American Moro Vacuum Pump in
2400L/Min;
- High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
- Hydraulic Arm for easier sewage hose handling;
- Remote control system.
Product Specification
| Chassis parameters | |||
| Condition | New condition /4x2, right hand driving or left hand driving | ||
| Main details | Brand | Foton | |
| Curb weight(kg) | 8900 kg | ||
| Wheelbase(mm) | 4800 mm | ||
| Dimensions(mm) | 9120*2500*3550mm | ||
| Approach/Departure angle(°) | 20/17 ° | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Air brakes | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 11R22.5 | ||
| Transmission | Manual type, FAST Brand, 8 Forwards and 1 reverse | ||
| Cabin | FOTON AUMARK Model, with Air Condition, for 2~3 persons | ||
Engine | Brand | Cummins Engine | |
| Horsepower(HP) | 210 HP | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 6500 ml | ||
| Emission standard | Euro 2 or Euro 3 | ||
| Power Supply | PTO,one is for high pressure water pump and another is for spare | ||
| Sewage Suction & Cleaning System | |||
| Water tank | Capacity(cbm) | 4.0cbm/4,000 liters | |
| Tank material | Q235 carbon steel | ||
| Thickness | ≥5 | ||
| Safety protection device | 1-High water level; 2-Low water level 3-No water | ||
| Sewage tank | Capacity(cbm/liters) | 8.0cbm/8,000 liters | |
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | ≥5 | ||
| Opening of Rear Cover | 100% open by hydraulic control | ||
| Working pressure | 93% Vacuum | ||
| Sewer Discharging outlet(mm) | 100~150 | ||
| Tank is front tipping under function of oil cylinder | |||
| Sewage pump | Brand | Italian Brand Jurop | |
| Max. Working Speed(r/min) | 3300 | ||
| Max vacuum | 93% | ||
| Rate flow rate | 2400 L/min | ||
| High pressure water pump | Brand | China famous brand | |
| Type | Triple plunger pump | ||
| Max. Pressure(Bar/Mpa) | ≥180/18.0 | ||
| Rate speed(rpm) | 1500 | ||
| Rate flow(L/min) | 300 | ||
| High pressure Winch | Length of High pressure hose(m) | ≥60 | |
| Diameters of High pressure hose(mm) | ≥19 | ||
| Water nozzle | 10 different size water nozzle for cleaning sand,sludge and dirt | ||
| Lamp | 1- Revolving Warning Light on top 2- Upper Arrow Warning light at truck rear 3- Signal light at truck rear | ||
| Main parts | 1. Hydraulic controlled suction hose 2. Water-gas separator; 3. Oil-gas separator 4. Four way valve; 5. Safety valve 6. Anti overflow valve 7. Anti overflow warning device 8. Hydraulic control rear cover; 8. Tipping sewage tank body | ||
| Remarks | The color is optional | ||

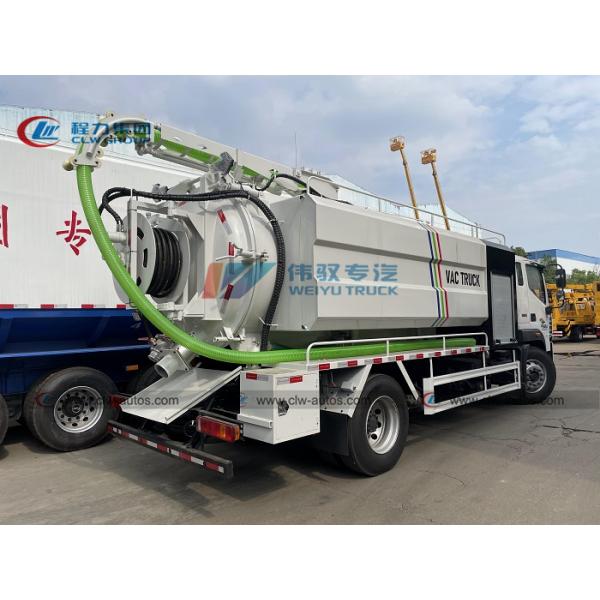

Reference Photos
We provide package solution and customized drawding for every sewage vacuum suction truck
Working Scene
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox,
axles; One set of easily worn spare parts of truck chassis for
free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to
customer's country to assist the installation and operation if
order QTY.is more than 10 units. Contact Lea For More Details: +86
155 2791 1810.
FAQ
Q1: What size sewage suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Have you supplied sewage suction truck to any overseas
companies?
A: Yes, we have supplied fire trucks to African, south-east Asian,
south-American and other more than 80 countries and regions.
Q3: Can we adopts International brand parts or accessories for fire
truck?
A: Sure, we already cooperated with many international brand
suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. Wuhan is two hours' plane from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
