| Categories | Textile Testing Machine |
|---|---|
| Brand Name: | GESTER |
| Model Number: | GT-C34B |
| Certification: | CE, ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Delivery Time: | 10-30 days |
| Packaging Details: | wooden packaging |
| Power: | AC220V |
| Usage: | Textile Testing Equipment |
| Product name: | Horizontal Flame Chamber |
| Warranty: | 12 Months |
| Motor: | Servo motor |
| Service: | Online support, installation and training |
| Company Info. |
| Gester International Co., Ltd |
| View Contact Details |
| Product List |

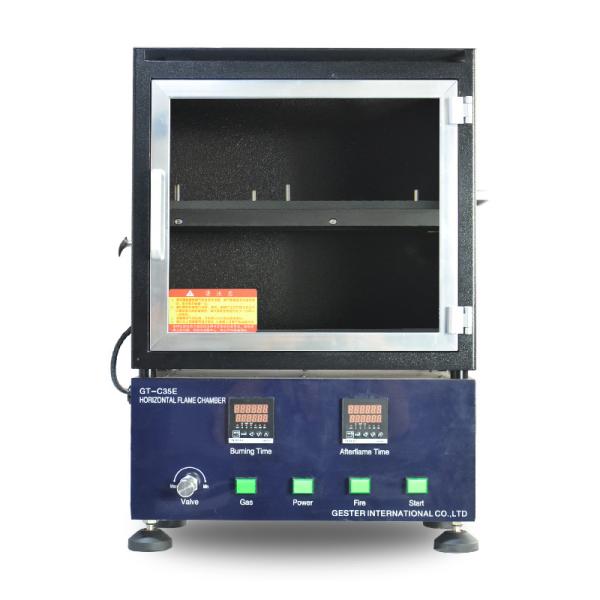

ASTM D5132 Horizontal Flame Chamber for Textile
Application: Horizontal Flame Chamber; Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles (for example, passenger cars, lorries/trucks, estate cars, coaches), and of tractors and machinery for agriculture and forestry, after exposure to a small flame.Standards: ASTM D5132, ISO 3795, FMVSS 302, JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953, SAE J369, GMW3232 |
| Time range | 0-999.9s |
| Time resolution | 0.01s |
| Ignition time | 15s |
| Specimen fixture | U shape, inner size: 330×50mm |
| Size of specimen | 356 x 100mm,Thickness less than 13mm |
| Burner angle | Vertical |
| Inner diameter of burner head | ¢9.5mm |
| Ignition height (burner top to specimen ) | 19mm |
| Flame height | 38mm+/-2 |
| Power supply | AC 220V 50/60HZ |
| Dimensions | 395 x 250 x 570 mm (L x W x H) |
| Weight | 30kg |

|
