HDPE Cellular Confinement System

Flexible Installation Black Smooth High Density Polyethylene Cellular Confinement System

Cellular Confinement System information

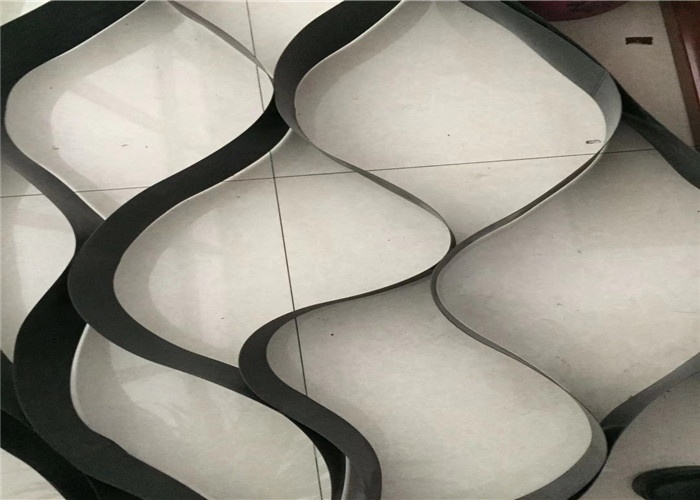

Cellular Confinement System(CCS)--also known as geocell, it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.

Cellular Confinement System Specification

1. Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
2. Welding distance: 330mm~1600mm
3. Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
4. Appearance/surface: smooth/textured

Cellular Confinement System construction method

1, Open the geocell.
2,Fixed with nails or connected with the framework of stretching device.
3, Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.
4,At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.

Cellular Confinement System Advantage

1,Virgin HDPE basic with Unique Formula.

2,Various weld spacing available from 330mm to 1600mm
4,Various strip height available from 50mm to maximum 300mm
5,Maximum strip length reaches 8m, expanded width reaches 6m.

Anping County Hengquan Metal Wire Mesh Products Co.,Ltd established in 2013, has specialized in the production and marketing of geogrids, geotextiles, geocells, geomembrane, chain link, welded wire mesh panel, hexagonal wire netting. The company now has a staff of 150 and 18 sets of professional high-tech equipment for geosynthetics and wire mesh production.

Hengquan company takes integrity and innovation as its core development philosophy. With 8 Years of experience, we have passed ISO9001:2000,ISO14000 :2000,CE,TUV, 90 ,Western Europe, Central America. Meanwhile, has built its reputation on a commitment to provide high-quality products and efficient services for its global clients.
