| Categories | Mobile Phone Testing Equipment |
|---|---|
| Brand Name: | Gaoxin |
| Model Number: | GX-5625 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiation |
| Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 25 working days |
| Packaging Details: | Non-fumigation wooden box |

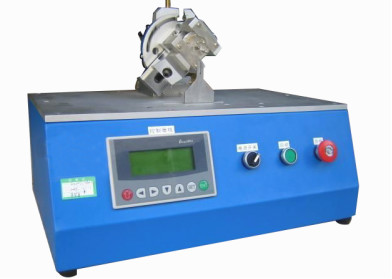

AS/NZS3112 Interligent Control Plug Pin Bending Tester
This equipment is according to Australian standard AS/NZS3112:2004 and Japanese standard JISC8303-1993 plug pin bending machine requirement and the latch the pendulum test equipment design and manufacture, equipment adopts step motor and ball screw drive to sway, chuck control system by PLC and man-machine interface in both Chinese and English in Japan, the operator on the man-machine interface can choose experimental model and set parameters.
1. Product Name: Pin bending tester
2. Product Model: GX-5625
3. Conform to the standard:Comply with Australian standard AS/ NZS3112:2004 and Japanese standard Jisc8303-1993 requirements.
4. Technical Parameter:
| Control system: | PLC human-machine interface control |
| Test mode: | Australian standard test mode and Japanese standard test mode |
| Australian Standard Test Mode: | 1. Rocking speed: 0-75mm/s (adjustable)；2. Swing stroke: 0-100mm(adjustable)；3. Swing mode: swing unilaterally at the bolt center |
| Standard test mode: | 1. Swing Angle: 0-600 (±300)；2. Swing speed: 0-15 times/minute；3. Swing mode: swing bilaterally with the bolt center |
| Distance between swing fixture and plug surface: | 0-20mm(adjustable) |
| Number of tests: | 0-9999 times, automatic stop after the test |
| Sample clamping: | Special vise and v-shaped slot for holding irregular samples |
| Selection of swaying zero point: | Manually move the tension rod for accurate stroke |
5. Picture
|
