Fire Fighting Motorcycle UTV with Foam Extinguishing System

1. Model: UTV700
2. Overall Dimensions(mm): Approx. Length:3010, Width:1575, Height:2200
3. Total weight with full load (kg): Approx. 1130
4. Engine type: Gasoline, 686cc, water cooled, 4-stroke, 1-cylinder
5. Max. Power: 32.4kw / 6000rpm
6. Driving manner: Front engine, four-wheel drive 4x4
7. Max. speed (km/h): 60
8. Ground clearance (mm): 280
9. Emission standard: Optional
10. Motor for water pump: HONDA Brand
11. Motor Type: Four-stroke, 1 cylinder
12. Rated Power (KW): 4
13. Starting method: Electric
14. Rotation speed (r/min): 3600
15. Water Pump Model: KAPPA430 (Italy Brand)
16. Water Pump flow rate (l/min): 40
17. Work Pressure (bar): 40
18. Self-suction function (m): 5
19. Rotation speed (r/min): 650
20. Model of Hose Reel: JPL-13/19-CX-Y
21. Length of hose (m): 30
22. Test Pressure of hose (bar): 100
23. Internal and external diameter (mm): 13/19
24. Model of Water Nozzle: GYQ30
25. Spray range of straight stream (m): 15
26. Spray range of mist spray (m): 7
27. Flow rate of water nozzle (l/min): 30
28. Foam proportioner: 0.4~6%
29. Flow rate (l/min): adjustable
30. Water tank capacity (L): 180
31. Independent Foam Tank capacity (L): 20

B. Company Profile

• CXFIRE is the largest fire trucks manufacturer in China. Established in 1963. The main manufacturing base is located in Chengdu of Sichuan Province with an area of 200,000 square meters and 600 staff members. More than 1000 units fire trucks are produced and sold every year.
• CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.
• With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.

C. Reference Pictures

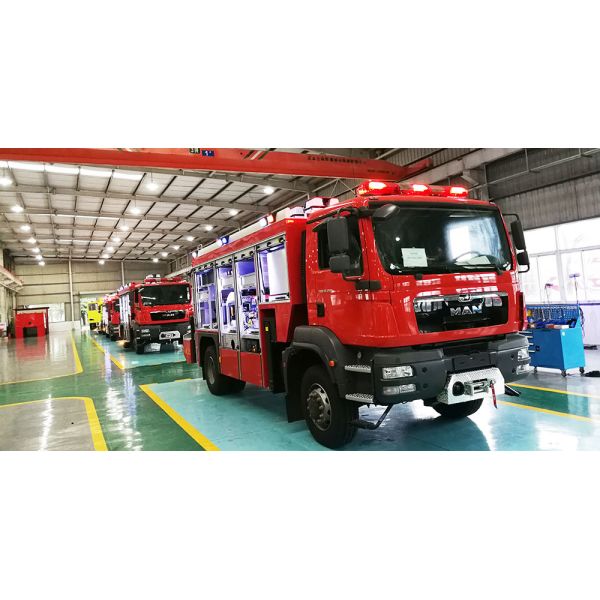

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.

CXFIRE has complete fire fighting products as follows:


1. Fire Trucks: With 144 basic fire trucks' models and more than 400 types of configuration. Different chassis can be selected according to customer's needs, such as Scania, Mercedes-Benz, Man, Vovle, Saic-Iveco Hongyan, Sinotruk, Isuzu, Dongfeng, Foton, Faw etc.


2. Fire Fighting Equipment: Fire extinguishing robot, Fire extinguishing drone, Fire pump, Fire monitor, Fire truck standard components, Rescue tools, Personnel protection equipment etc.


3. Fire Extinguishing System: Gas Extinguishing System, Water Extinguishing System, Foam Extinguishing System, Powder Extinguishing System etc.

CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

CXFIRE is the first fire protection company in China to pass international certification, and its manufacturing standards could meet the requirement of ISO, CCC, CE, EN, NFPA. As a national high-tech enterprise, now CXFIRE totally owns more than 300 patents including patent of invention, appearance design patents and utility model patents.

With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
