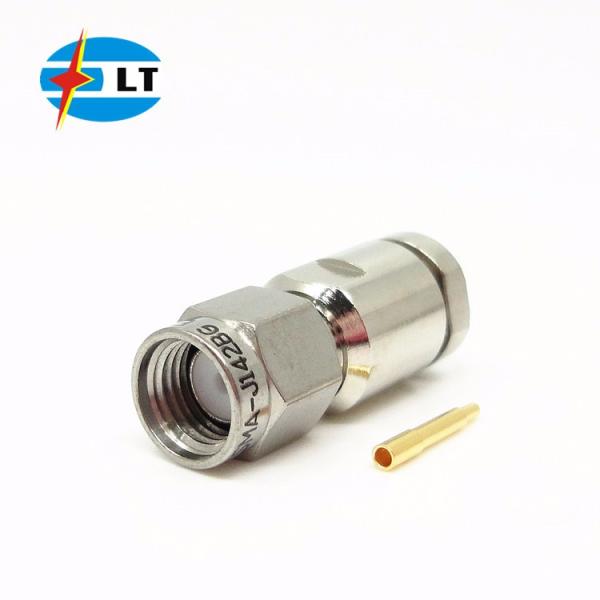

50Ohm SMA Straight Male Plug Adapter RG142 Cable

50Ohm SMA Straight Male Plug Connector RG142 Cable

1.SMA 50Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 20GHz and outstanding mechanical durability.

2.SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz

3.SMA RF connecons.tors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configuration

4.Built in accordance with MIL-C-39012, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

Specifiacation of SMA Rf Connectors:

Outline Drawing of SMA RF Coax Connectors:

Material & Mechanical Characteristics:

Key Features:

• Using a threaded interface
• Frequency range up to 18GHz Sub-miniature coaxial connectors
• Available in passivation or gold plating
• Wide variety of orientations and PCB terminations
• Available in straight or right angle versions
• With bulkhead, 2 holes panel, 4 holes panel or mountless options.
• Broad range with male, female and adapters variants.
• Brass and stainless steel material options

Applications

• Telecommunications
• Base Stations
• Antennas
• Instrumentation
• 5G Solution

Product Cataloge:

​NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
