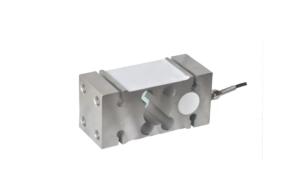

800x800mm 250KG Platform Scale Load For Industrial Scales

800x800mm 250KG Platform scale Load for industrial scales


Product Details

FEATURES:

Capacity 50kg to 2t

Strong resistance to partial loading

High precision

Compact structure


APPLICATION:

Platform scale

Packing scale


Outline Dimension:
Rated capacityLWHTL1L2
50,100,150,200,250,300,500,750kg,1t,2t1506472M143845

SPECIFICATION:
Rated capacity: 50kg to 2tonMaximum safe overload:150% OF R.C
Rated output:2.0±0.2mv/vUltimate safe overload:300% OF R.C
Accuracy class:0.03Recommended Excitation:10V DC
Non-linearity:±0.03%F.SMaximum Excitation:15V DC
Hysteresis error:±0.03%F.SEnvironment protection: IP65
Creep error(30minutes):±0.03%F.SInput impedance: 382±15Ω
Non-repeatability:±0.02% F.SOutput impedance: 352±3Ω
Zero balance: ±3% %F.SInsulation resistance at 50V DC: ≥5000MΩ
Temperature effect on zero: ±0.0175% F.SMaterial:nickel-plated alloy steel
Temperature effect on output: ±0.0175% F.SCable length: 3meter, diameter 5mm
Operating temperature range: -30 to +70℃Max.platform size:800x800mm

We specialize in the development of industrial scales. We have mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
