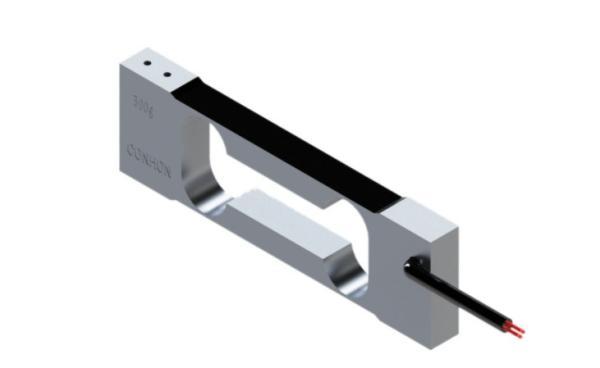

High Precision Balance Sensor 3000G Weighbridge Load Cell

High Precision Balance Sensor 3000G weighbridge load cell

Features & Applications

Low height,small deformation, small size. Stainless steel material
Customizable high temperature performance,used in manufacturing processes such as injection molding and backlog.

Applicable to car pressing, automated assembly,3C product testing.

Anti-bias load, low height, good strength, easy installation

150, 200, 300, 600, 1200, 1500, 3000(g)(Customizable range)

PARAMETER	UNIT	VALUE
Rated capacity (Emax)	g	150(1),(2), 200(1), (2), 300(2), 600, 1200, 1500, 3000
CONHON Grade		R	S	U	V
Sensitivity	mV/V	0.90
Sensitivity tolerance	± mV/V	0.10
Zero balance	± mV/V	0.10
Y=Emax/vmin	Typical	4000	5000	6000	8000
Z=Emax/(2*DR)	Typical	3000	4000	5000	6000
Creep (From stable to 2min)	± %	0.0085	0.0050	0.0033	0.0028
Temperature effect on output	± %/ °C	0.0014			0.0012
Hysteresis	%	0.0080	0.0045	0.0032	0.0025
Linearity deviation	%	0.0120	0.0100	0.0060	0.0045
Repeatability	%	0.0090	0.0050	0.0040	0.0030
Eccentric loading error	% /cm	0.0042	0.0042	0.0036	0.0024
Nominal temperature range	°C	+10 to +40
Service temperature range	°C	-30 to +70
Limit load	% of R.C.	200
Break load	% of R.C.	300
Nominal Humidity Range	%RH	20 to 65
Nominal excitation	V	5
Max. excitation	V	15
Input impedance	Ohm	410 ± 15
Output impedance	Ohm	350 ± 3
Insulation resistance	MOhm	>2000
Cable length	Meter	0.35
Cable type		4 conductors, 28 AWG, Aluminum foil Shielded, Black PVC Jacket
Color code		+Exc -Grn, +Sig-Red, -Exc-Blk, -Sig- Wht
Construction		Aluminum
Compensation circuit type		Balanced Bridge
Protection class to IEC529		IP 66
