37KW Environmental Friendly HL60 Tower Batching Plant

HL60 Environment Friendly Tower Type Concerete Batching Plant

Features Of HL60 Environment Friendly Tower Type Concerete Batching Plant

Wide Range Of Application

The HL60 environment friendly tower type concrete batching plant consists of conveying system, storage system, weighing system, concrete mixing system and control system. It is widely used in large and medium-sized construction sites, commercial concrete, prefabricated components and other concrete centralized mixing places.

Excellent Mixing Performance

The equipped MS twin-shaft mixer or MP planetary mixer has excellent performance, good mixing quality and high production efficiency. The accurate arrangement of mixing arms allows the rapid mixing of all types of quality concrete (dry, semi-dry and so on).

Advanced Control System

The HL60 environment friendly tower type concrete batching plant adopts the computer network and automatic control, which can achieve the network monitoring and automatic controlling to manage and control the whole process of concrete production.

Environment Friendly

All the raw materials, from the feeding, batching, weighing, throwing into the mixer and discharging, are all in sealed structure. The completely packed mixing main building and aggregate belt conveying system significantly reduce the dust pollution and noise. Negative pressure pulse dust collecting system can thoroughly solve the dust pollution problem during the production.

Easy Maintenance

Humanized large maintenance platform and stairs are easy and convenient for repair and maintenance.

Technical Parameter of HL60 Environment Friendly Tower Type Concerete Batching Plant

The Main Parts' Characteristics

The mixing building adopts computer optimization design, advanced system configuration, high degree of modularizatoin, reasonable layout,
convenient installation and debugging, which can meet the needs of different users to the concrete building. Overhead type of aggregate storage
measurement system greatly improves the productivity of the equipment. The main components of the control system adopt international famous
brand of imported components. It assures the reliable work, stable performance and accurate measurement. Perfect industrial design and
thorough ergonomics processing make it unique structure, beautiful appearance, excellent environmental performance comfortable operation and
convenient maintenance.

HL60 Environment Friendly Tower Type Concerete Batching Plant Main Parts

Aggregate Batching System PLD1200 Customization 3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/cumulative weighting.			Concrete Mixer MS/MP1000 Equipped with twin-shaft concrete mixer or planetary concrete mixer. Discharg height is 4.0m or 4.2m. Pneumatic/Hydraulic control, easy to replace of wear parts, such as liner plates.
	Aggregate Feeding Mode Skit hoisted feeding or belt conveyor feeding	Automatic Control System Full-automatic PLC/Centralized control with the emergency stop button and safety control key. TV monitoring systems for batching machine, concrete mixer, and discharging mouth are optional for clients.
Bolted Cement Silo modular making with dust collector, arch broker, pressure relief valve, level gauge.

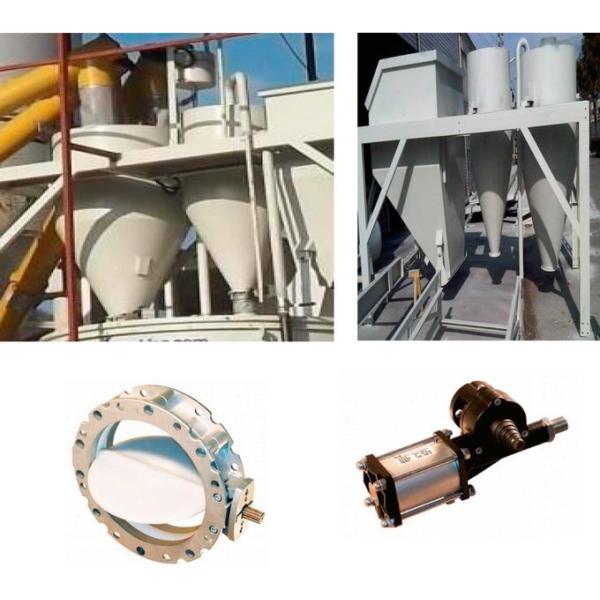

			Butterfly Valve
Screw Conveyor
	Weighing System The weighing system includes aggregate weighing, water weighing, cement weighing and additive weighing(optional). It is controlled by microcomputer, the weighing is highly accurate and fully automatic. Using a sensor with good quality, the tolerance of the weighing accuracy low to ± 1%. Or lower as customer's requirements.

TSKY Factory

TSKY Certificates

TSKY Globle Service

TSKY group is the first batch of national second-level measurement unit, ISO9001 certified enterprise, with two production bases covering an area of 600,000 square meters; it has more than 5 large-scale modern productions Workshop，such as casting, machining, welding, heat treatment and forging, more than 1,200 sets of production equipment, including 10 sets of roller production lines, 4 sets of belt conveyor production lines; more than 400 engineering and technical personnel, including more than 200 middle and senior engineers, strong technical force, with strong research and development, product design and Manufacturing capacity.

Our company has introduced advanced technology at home and abroad, and has continuously innovated. Over the years, we have provided professional conveying and crushing solutions for customers in more than 30 countries and regions in China and All over the world.

Wide Product Range

TSKY, use the highest production technology and innovation, offers a wide product range for its customers including mobile, compact, stationary and on-site concrete batching plants along with trailer type concrete pumps, concrete recycling plants, cement silos, cement feeding systems and concrete block making machines to meet the various requirements of its customers from different geographies.

Moreover, TSKY offers concrete paving and block machines, tailor-made concrete batching plants and concrete delivery systems like high speed concrete travelling buckets, ground buckets, etc. for production of concrete precast industry.

Customer Oriented After Sales Service

Along with high quality products, TSKY provides customer oriented after sales service to meet the service and spare part requirements of the users within the shortest time. Thanks to its aftersales service network spread all over the world, TSKY provides the fastest and most efficient service to its customers even if they are in the remotest point of the world.
