Stainless Steel Food Industry 50mm Wire Mesh Conveyor Belt

Categories Conveyor Belt Wire Mesh
Brand Name: QiJie
Model Number: SGS20201104218
Certification: Certification ISO20201104218
Place of Origin: HeBei,China
MOQ: 1 sets
Price: Discuss
Supply Ability: 5 Set/Sets per Month hot sale plc control fully automatic chain link fence machine
Delivery Time: within 7-30 days
Packaging Details: wooden cases or nude packaging for chain link fence machine .
Payment Terms: 30%TT in advance, Balance before loading
Material Feature:: Heat Resistant
Structure:: Belt conveyor
Place of Origin:: Hebei, China
Voltage:: 220V
Dimension(L*W*H):: 100*3000*2
Belt material:: SS304 / SS 316
Spiral pitch:: 50mm
Rod pitch:: 6-12mm
Email: devin@industrialmetalmesh.com
whatsapp: +8615369013183
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

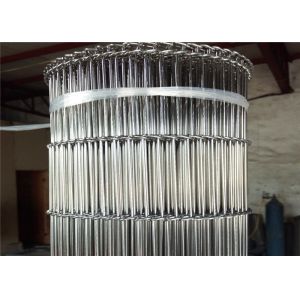

Stainless Steel Food Industry 50mm Wire Mesh Conveyor Belt


Stainless Steel Wire Mesh Convey Belt/food Industry Chain Conveyor Belt Mesh


Product Description

Food conveyor belt

Flat flex belts are made of stainless steel wire of spring wire. Wire diameters varies from 0,9 until 3.2mm. Pitches from 4 mm until 22.23mm, and belt widths from 10 mm until 3 metre. We a big range of standard dimensions, but can make all the (non standard) dimensions too because of the multi adjustable production machinery. Belts executed with single loop (most common) or double looped edges for special occasions.

Flat flex belts can be made for straight conveyors and for curve conveyors.

Food conveyor belt

Food conveyor belt

Flat flex belts are normally driven by toothed sprockets, made of (stainless) steel or plastic. The number of teeth is free to choose and can be made for every new or existing conveyor.

This belts are often used in conveyors for the food industry for the production of:

snacks -fish -pizzas -vegetables -bread

pastry -meat -candy - (small) potatoes

-biscuits -chocolate -nuts and fruits


Material
Stainless steel wire(AISI304, AISI304L, AISI316, AISI316L),galvanized iron wire,nickel chrome wire,copper wire,polyester wire etc
Weaving method
Common weaving,strength weaving,sectional common weaving,etc.
Mesh Size
6*50mm, 10*70mm, etc
Thickness
1.0mm-2.0mm
Width
500-2000mm
Length
2m-10m
Features
Heat-resisting and high carrying capacity,acid-proof and oxidation-proof.

smooth belt surface,High allowable belt tension,No belt slip,Improved belt design,One module thus minimal clearance,More even heat distribution


features

1.wire belts can be applied in almost any applications

2. run straight without guidance

3.can working at low to high temperatures

4.resistant to acid, alkaline, chemical corrosion, abrasion

5.smooth conveying surface

6.long service life

Packaging:

1. Inside with plastic bag and outside with wooden box.
2. According to customers' request.
Shipping: 7-15 days after received advanced payment.

Applications

1.Quick-frozen, baking machinery plane conveyor, screw conveyor.
2.Food machinery of the cleaning, sterilization, drying, cooling, cooking and so on
3.Glass machinery lose bottle annealing, roast flowers, etc.
4.All kinds of pipeline transport.
5.Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.




6.Powder metallurgy, metal heat treatment, hardening, sintering, brazing, roasting, bright, black, bearing, carburizing high-temperature LuWang belt, baffle type drying conveyor mesh belt, mesh belt, foam nickel mesh belt production line, washing machine, winding machine, drying machine, dryer, curing LuWang belt.Each delivery such as process equipment.

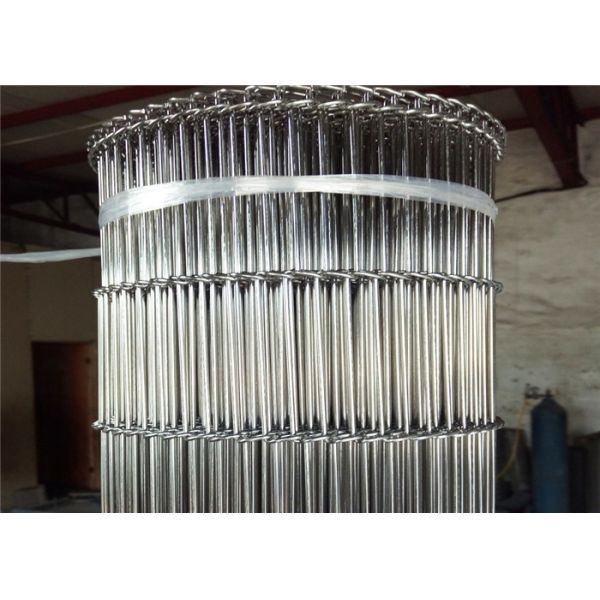

China Stainless Steel Food Industry 50mm Wire Mesh Conveyor Belt factory
