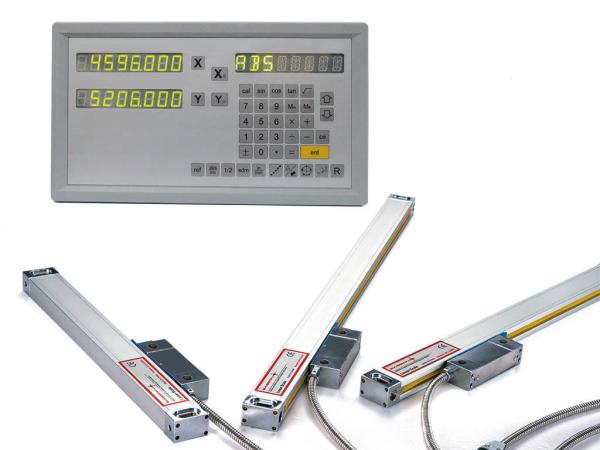

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine

Categories Digital Position Readout
Brand Name: Easson
Model Number: EA-926 2X
Certification: CE
Place of Origin: P.R.China
MOQ: 1SET
Payment Terms: T/T
Supply Ability: 1000 SETS per Months
Delivery Time: 5 working days
Packaging Details: Carton
Name: Mill Dro Kit 2 Axis
Keyword: Digital Readout Unit
Main Material: Plastic
Display Resolution: 0.1µm, 0.5µm, 1µm, 5µm
Warranty: 13 Months
Application: Milling, Lathe, Grinder, wire cut
Power Supply: 110V / 220V
Output Signal: TTL
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Linear Measuring 2 Axis Digital Readout For Lathe Milling Machine


Cost-effective & High Quality Milling function 2 axis Digital Readouts Systems


Product Introduction


The EA series is the all in one function readout system series. It is a practical, multifunctional optical glass scale digital display developed by Easson.

The design focus is ensure the all in one function and high quality, and try to use the most reasonable solution, reducing the price, facing the practical market.


The Autotex is used as the key membrance of EA series, it offer excellent chemical resistance to most commonly used industry solvent and excellent switch life, switch life of expected to be 100,000 times.


Ultra Low Temperature Rise Transformer


Easson all Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.


To reduce the total heat generation inside the DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.


EMC Testing equipment



To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.


Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:


  • IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
  • IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
  • IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )



Technical Specification




Model NumberEA-926
Axis numberTwo Axis
Axis Display0.1μm, 0.5μm, 1μm, 5μm
Signal InputTTL
Voltage RangeAC110 V - 220 V / 50Hz - 60Hz
Net Weight (kg)2

Input frequency

2 MB Hz
Operation KeyboardLight touch buttons
Operating temperature0℃ - 45℃
Storage temperature-40℃ - 55℃
Relative humidity≤ 95%
Inputs2 linear encoders
EMC Standard

IEC61000-4-2 / GB / T 17799-2

IEC61000-4-4 / GB / T 17799-4

IEC61000-4-5 / GB / T 17799-5



Basic parameter is included as below:


Centering (1/2)
Metric / inches Display (mm / Inch)
Absolute / incremental (ABS / INC)
Power off Memory (30 subdatum)
199 subdatum
Reference Memory (REF)
Zero
Pitch Circle Diameter (PCD)
Line Hole Positioning (LHOLE)
Simple “R” Function
Smooth “R” Function
Linear Error Compensation
Non Linear Error Compensation
INCL Function
Axis Speed Display

Advanced functions for Milling machine



FAQ


1. Who we are?

Easson is a manufacturer in design and manufacturing precision measuring equipment. Vision Measurement Systems, Optical Profile Projector, Digital Readout System(DRO), Linear encoder glass scale.


2. How can we guarantee quality?

We are implementing the Total Quality Management (TQM) system to our factory in China more than 20 years. Strict control of production processes and quality records and labour trainning, also products aging test etc.. All this to ensure the quality assurance always be implemented throughout all the production processes.


3. Did you accept OEM customized service?

Of course, we can provide not only typical products but also the products customized to customer's request based on the order quantity.
