| Categories | Pallet Wrapping Machine |
|---|---|
| Brand Name: | ThoYu |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, Western Union, MoneyGram |
| Supply Ability: | 20-60 sets per month |
| Delivery Time: | 10-30 working days |
| Packaging Details: | Strong wooden pallet for global shipping |
| Model Number: | TYPSW-1000 |
| Product Name: | Carriage Peed Adjustable Automatic Pallet Stretch Wrapping Machine |
| Min wrap size(L*W*H): | 500mm*500mm*500mm |
| Max wrap size(L*W): | 1200mm*1200mm*2000mm |
| Turntable rotation speed: | 3-12 rpm |
| Turntable diameter: | 1650mm |
| Turntable height: | 85mm |

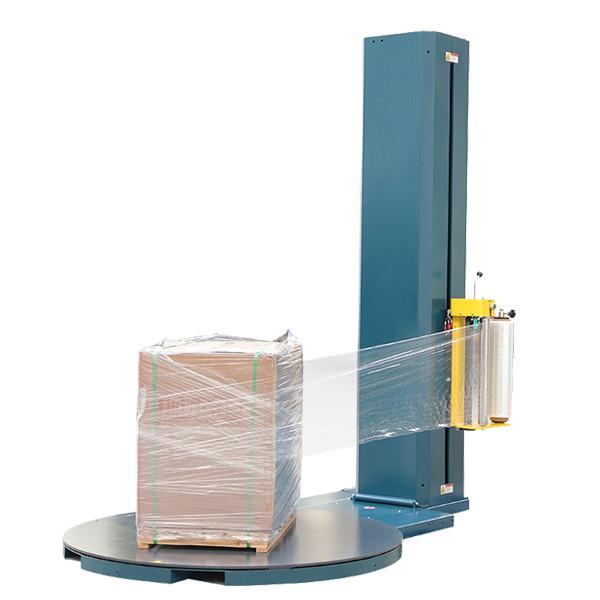

Carriage Peed Adjustable Automatic Pallet Stretch Wrapping Machine
Introduction of Carriage Peed Adjustable Automatic Pallet Stretch Wrapping Machine:
Carriage peed adjustable automatic pallet stretch wrapping machine
work process is using LLDPE stretch film (a plastic film) to wrap
goods which load on the pallet, the carriage peed adjustable
automatic pallet stretch wrapping machine provides extra support
while the products being transported or stocked so that they do not
tip, spill, or otherwise damaged.
Carriage peed adjustable automatic pallet stretch wrapping machine
is widely used in the chemical industry, electronic industry,
building materials, home appliances, paper making, foodstuff &
drink, etc, especially the container goods transportation in
foreign trade.
Control Panel of Carriage Peed Adjustable Automatic Pallet Stretch Wrapping Machine:
Auto-Start: The machine will start to work
Film tension: This switch is adjustable to set various film tension
between the film system and the goods being wrapped.
Carriage speed: Adjust the speed of the carriage up and down.
Technical Parameters of Carriage Peed Adjustable Automatic Pallet Stretch Wrapping Machine:
| Product Name | Carriage Peed Adjustable Automatic Pallet Stretch Wrapping Machine |
| Min wrap size(L*W*H) | 500mm*500mm*500mm |
| Max wrap size(L*W) | 1200mm*1200mm*2000mm |
| Max wrap height | 2000 mm(option: 2400 mm, 2600 mm,2800 mm,3000 mm) |
| Max load weight | 2000 kg(option: 2500 kg, 3000 kg) |
| Turntable rotation speed | 3-12 rpm |
| Turntable diameter | 1650 mm |
| Turntable height | 85 mm |
| Carriage up/down speed | adjustable |
| Film carriage | Pre-stretch 300% |
| Packing efficiency | 20-40 loads/hour |
| Voltage/Power | 220 V/50 Hz, 1 Phase, 1.5 kW |
| Machine size | 2650mm*1650mm*2400mm (L*W*H) Standard |
| Machine weight | 650 kg |
RFQ:
Q: Why we believe in your company?
A: a. We are a factory with more than 15 years’ manufacturing
experience.
b. We are the leading professional supplier of solutions, machines,
and services for the pallet production industry.
c. All products achieved ISO9001:2000 quality management
certificate and CE certificate.
Q: What is the delivery time?
A: About 7- 45 working days after the contract signing (After
getting deposit). Delivery time will vary depending on the type of
the machine, shipping method selected, and part availability.
Q: What are your payment methods?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash. After sign
the contract, pay the 30%-50% deposit of the total purchase price
and pay the full payment before delivery.
|
