| Categories | Fanless Power Supply |
|---|---|
| Model Number: | JSNN-100-12 |
| Brand Name: | J-STAR |
| Certification: | CE ROHS SAA |
| Place of Origin: | CHINA |
| MOQ: | 10 |
| Price: | Welcome your inquiry |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 |
| Delivery Time: | 10-15DAYS |
| Packaging Details: | white inner box and carton |
| Production Name: | pixel led power supply |
| Warranty: | 3 years |
| Performance: | stable and long life span |
| Heat: | Good Heat dissapation |
| DC: | DC12V 100W 8.5A |
| MOQ: | 10pcs |

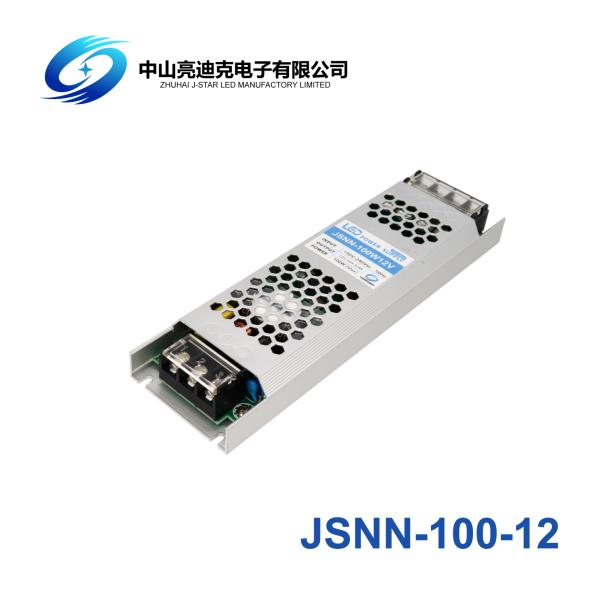

OEM Ultra Slim 12v 100w 8.5A Fanless Power Supply 90% Efficiency
Ultra slim led driver 12V 8.3A 100W ultra thin led power supply for light box For led strip 12v
| DC Output | DC Voltage: 12V |
| DC Current : 8.5A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:90% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
Q1: What is your MOQ of switch power?
A: Our MOQ is 1 piece.
Q2: How many year warranty of your Led driver?
A: Two years.
Q3: Do you offer sample of power?
A: Yes,We offer free sample,but you need pay the shippment.
Q4: Do you have switch power factory?
A: Yes,we are OEM & ODM manufacturer in ZHONGSNAN CITY!
|
