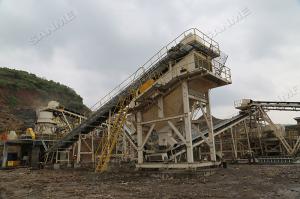

Scheme Design Of Limestone Crushing And Screening Production Line

INTRODUCTION OF LIMESTONE

Limestone is the trade name of limestone as mining raw material, it has a very wide distribution with abundant reserves. The main component of limestone is CaCO3. Its Moh's hardness is 3. It is an important road construction material, and also it is an important material for calcinating lime and cement, it is an indispensable high calcium lime to metallurgical industry, after ultrafine grinding, high quality limestone can be widely applied in the production of paper making, rubber, paint, coating, medical, cosmetic, feed, sealing, adhesion, polishing. The compressive strength of limestone is typically about 150 MPa, it belongs to soft rock, and therefore impact crusher is adopted for the production process of limestone production line. The proven Sanme impact crusher is a new type of impact crusher with high efficiency, and is suitable for crushing limestone and sandstone, 95% of crushed material <45mm.

BASIC PROCESS OF LIMESTONE CRUSHING PRODUCTION PLANT

The limestone crushing production line is divided into three stages: coarse crushing, medium fine crushing and screening.

The first stage: coarse crushing

The limestone stone blasted from the mountain is fed uniformly by the vibrating feeder through the silo and transported to the jaw crusher for coarse crushing.

The second stage: medium and fine crushing

The coarsely crushed materials are screened by vibrating screen and then conveyed by belt conveyor to cone crusher for medium and fine crushing.

The third stage: screening

The medium and finely crushed stones are conveyed to the vibrating screen through a belt conveyor to separate stones of different specifications. The stones that meet the requirements of the customer's particle size are conveyed to the finished product pile through the belt conveyor. The impact crusher crushes again, forming a closed circuit cycle.

Technical Data of HC Series Impact Crusher:

Technical Data of HSI Series Impact Crusher:

LIMESTONE AGGREGATES PROCESSING PROJECT CASE
