Name: Black Tyco AMP Connectors 8 Way Male Automotive Connectors 2018 AWG 7765381
Brand: YBADDVANCE
Price: 1 USD

Home > Passive Components >

Black Tyco AMP Connectors 8 Way Male Automotive Connectors 20-18 AWG 776538-1

Categories	Tyco AMP Connectors
Brand Name:	YBADDVANCE
Model Number:	776538-1
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 units
Price:	Negotiation
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Connector type:	Socket, straight
Current:	Up to 13 amps
Gender:	Male
Part Number:	776538-1
Color:	Black
Pins:	8
Series:	AMPSEAL 16
Feature:	Waterproof
PLACE OF ORIGIN:	Shaanxi,China
Type:	amp connectors

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

AMPSEAL 16 Series 8 Way Male Automotive Connectors 20-18 AWG 776538-1

Specification

Item name	AMPSEAL 16 Series 8 Way Male Automotive Connectors 20-18 AWG
P/N	776538-1
Wire Size	18-20AWG
Operating Temperature range	-40℃~125℃
Width	47.55 mm [ 1.872 in ]
Height	26.65 mm [ 1.049 in ]
Depth	28.6 mm [ 1.126 in ]
Row-to-Row Spacing	5.3 mm [ .209 in ]
Delivery Time	About 5-8 work days
Sealed/Unsealed	Sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	8 Hole
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

Description

AMPSEAL 16 Series 8 Way Male Automotive Connectors 20-18 AWG

This connector kits come with terminals together and will be provided by YBADDVANCE.

It's in stock and we can post you right away.

Mating Pin Diameter : 1.5 mm [ .059 in ]

Centerline (Pitch) : 4.5 mm [ .177 in ]

Connector System : Wire-to-Wire

More Connector

Amp Tyco Connector	Description	Fit For
BC7014-3.5-21	1 pin 3.5 Series EV1 Female Fuel Injector Connector
7-1866487-1	34 Pin Female Sealed ECU Connector Wire Loom A
8E0972416	16 pin female	For VW Audi
BC7039	6 pin female	For Truck
770680-1	23 pin male
776231-1	35 pin male Straight	For Truck Bus
1-1718806-1	5 pin female
368537-1	12 pin male
5273338	12 pin female 1.5K Series

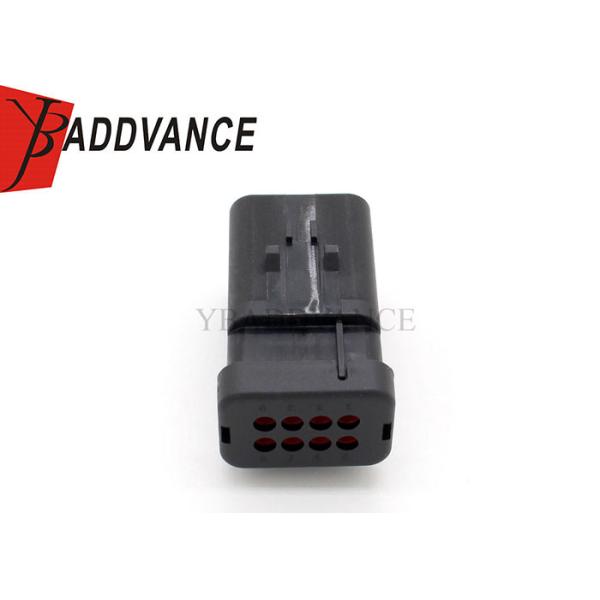

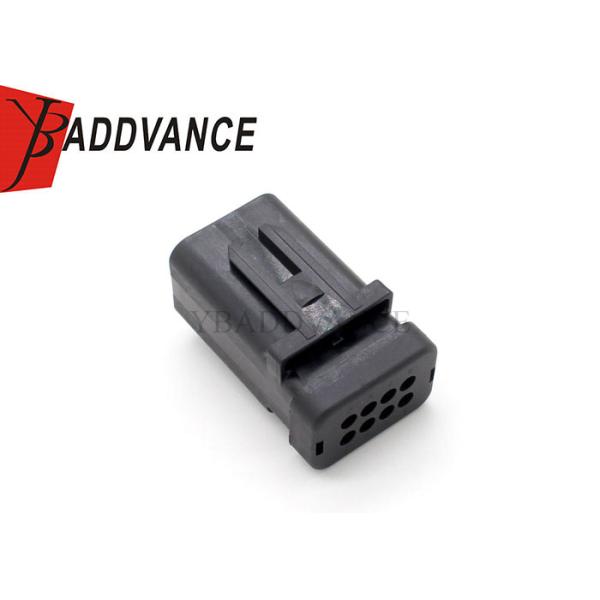

Product Picture Details
