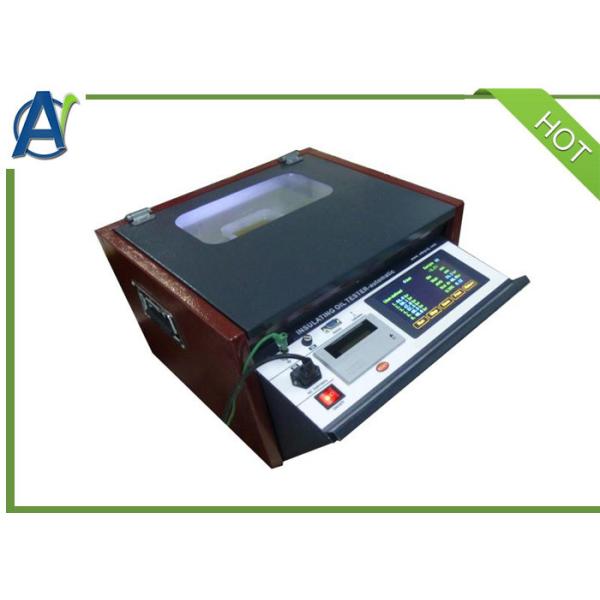

Portable Transformer Oil Test Set , Dielectric Oil Breakdown Voltage Tester

Categories	Transformer Oil Test Set
Brand Name:	AI
Model Number:	BDV-2
Certification:	ISO
Place of Origin:	China
MOQ:	1 Set Transformer Oil Breakdown Voltage Tester
Price:	Negotiable
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100 sets per month
Delivery Time:	15 days
Packaging Details:	Transformer Oil Breakdown Voltage Tester packed in Plywood case
Power supply:	AC220V, 50Hz
Display:	LCD
Output voltage:	AC 0V~80KV or 0~100KV
Accuracy:	±(1% of full scale + 2 digits)
Warranty:	1 Year
Keyword:	Oil Testing Set,Breakdown Voltage Testing Set
Rate of voltage rise:	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
Temp.measuring range:	0°C to 70°C, or better

Contact Now

Add to Cart

Company Info.

Advanced Instruments Co.,Limited

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Dielectric Breakdown Voltage Portable Oil Testing Set

I.Introduction:

It is designed according to IEC156 Insulating Oil Dielectric Strength Test Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
This dielectric oil breakdown voltage testing set has large LCD display, all the selection can be done by touch panel with color LCD;
This dielectric breakdown voltage testing set also has micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
This portable oil testing set is multi-functional, stable, and easy for operation

II.Specifications:

No.	Parameters	Specifications
1	Output voltage	AC 0V~80KV or 0~100KV
2	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3	Max. test times	9
4	Stir time	0~999s
5	Wait time	0~999s
6	Measurement accuracy	±(1% of full scale + 2 digits)
7	Resolution	0.1KV
8	Temperature measurement range	0°C to 70°C, or better
9	Temperature resolution	1°C, or better
10	Data storage	100 groups
11	Weight	38kg
12	Size	550 mm500mm580mm
13	Power supply	AC220V, 50Hz
14	Working environment	Room temperature to 45°C, humidity<85%
