Name: 3 inch good qualityandroid pos barcode supported thermal ticket printer vending machine kiosk printer
Brand: MASUNG
Price: 170 USD

Home > Printers >

3 inch good qualityandroid pos barcode supported thermal ticket printer vending machine kiosk printer

Categories	Kiosk Thermal Printer
Brand Name:	MASUNG
Model Number:	W80
Certification:	CE FCC RoHS
Place of Origin:	China
MOQ:	1 unit
Price:	170-180USD/piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 unit per month
Delivery Time:	5-8 days
Packaging Details:	Standard package
Print method:	thermal dot line printing
Resolution:	8dots/line
Interface:	RS-232C/USB
Printing speed:	250mm/second
Power supply:	24V/2A±10%
Paper width:	60mm/80mm/82.5mm
Print width:	72mm
Operating system:	Wins/Android/Linux/Rpi
Paper type:	Thermal paper
Paper thickness:	0.06-0.2mm
Cutting method:	Full/partial cut
Weight:	1.45kg

Contact Now

Add to Cart

Company Info.

Shenzhen Masung Technology Co. Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

3 inch good qualityandroid pos barcode supported thermal ticket printer vending machine kiosk printer

Product profile

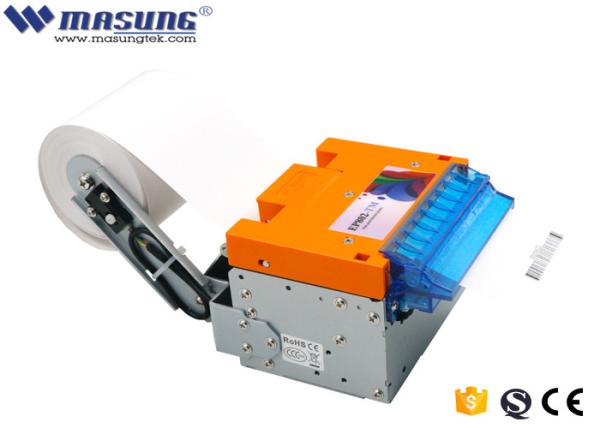

The MASUNG EP802-TM 3 inch thermal ticket printer machine is designed special for sports betting kiosks .

Small size and flexible mounting methods you can put these kiosk printers anywhere.Flexible mounting options include the vertical orientation 90° position for the thinnest of vertical footprints.

Features

Small compact-shelf and door mount design

Fast ,high quality 203 dpi output at print speed up to 250 mm/s with 2D barcode capacity

Adjustable paper width :60/80/82.5 mm

80 mm or 150 mm diameter roll paper (standard)

Paper thickness :from 55 to 80gsm

Full and partial cut option

Label printing option

Smart bezel :combined anti-block &anti-drag system

Simple paper loading using standard receipt style paper rolls with an outside diameter up to 120mm and the option of using either a 12.5mm or 25mm core.

Specifications

Control board		EP802_3
Thermal printer head		Brand name: ROHM
Auto cutter		Brand name: OYANE
Printing	Printing method	Thermal dot line
	Dots	640dots
	Speed	250mm/s (max)
	Printing width	80mm (max)
	Paper width	80/82.5 mm
	Paper thickness	0.06~0.2 mm
	Paper loading	Easy loading ( horizontal 180°)
	Cutting method	Full/partial
	Print head life	Over 100KM
	Printing format	inverse,underline,italic,bold
	Cutter life	60μm paper		1,000,000 cuts
		200μm paper		500,000 cuts
	Baud rate	9600,19200,38400,115200
Font	ASCII	917,1224
	Chinese	24*24dots
Detection	TPH temperature	Temperature sensor
	Mechanism open detection	Micro switch
	“anti-drag ticket detection		Mechanical sensor
	Paper blocked detection
	Paper near end detection		Photo-interrupter
	Black mark detection
	Paper cutting detection
	Paper presence detection
Conditions	Power supply	DC24±10% V
	Load current	1.5A continuous 61mA Standby 3.2 A Peak
	Interfaces	RS232,USB
	Paper	Paper type	Thermal paper roll
		Recommended paper type	KANZAN KF50 KP460 MITSUBISHIPG5075 TL4000
Environment	operating temperature	-10~60℃(no condensation)
	operating humidity	20%~80%RH(40℃,85%RH)
	Storage temperature	-20~70℃(no condensation)
	Storage humidity	10%~90%RH(50℃,90%RH)
Dimension	Paper holder 45° upward ( 150mm paper roll)	LWH=219.5119.3087.3mm
	Paper holder horizontal (150 mm paper roll)	LWH=294.5119.3087.5mm
	Paper roll vertical (150 mm paper roll)	LWH=154.2119.30258.6mm
	Weight	Approx 1.45kg (without paper roll )
