| Categories | Aseptic Pouch Filling Machine |
|---|---|
| Brand Name: | PLS |
| Model Number: | WB64B-9000A |
| Certification: | ISO9001, CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 60-90 days |
| Packaging Details: | Sea worthy packaging |
| Name: | Aseptic Pouch Filling Machine |
| Application: | Milk, Juice, Beverage |
| Filling Volume: | 500-1000ml |
| Capacity: | 2500-3000 PPH |
| Filling heads: | 2 |
| Sealing way: | 3 sides |
| Filling Temperature: | 0-40℃ |
| Power: | 30kw |
| Dimension: | 4600mm*1500mm*3600mm |
| Condition: | New |
| Automatic Grade: | Automatic |
| Warranty: | 1 year |

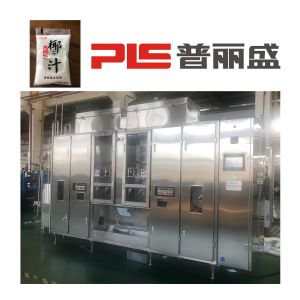

The machine adopts complete pneumatic structure and PCC intelligent computer controllable program control with stable running, simple operation and low maintenance cost. The products are continuously upgraded. The high speed machine of 9000 model has been firstly produced in the country.
This packing machine has been widely applied in various fields, including liquid dairy products, plant protein beverages such as UHT milk, flavored milk, fruit juice, peanut milk, soybean milk, vinegar, water and yellow wine. It also has the extending functions like automatic cursor orientation and step-less filling speed control. It can pack 2 different volumes at same time (eg, 200ml * 500ml simultaneously).
| Type | WB64B—9000 |
| Produce capacity | 100ml ----- 9000 bags/h 500ml ----- 4500 bags/h |
| Filling adjust way | Non-step |
| Filling heads | 2 (separate filling volume control) |
| Packing type | Three sides seal |
| Filling temperature | 20~25℃ |
| Film wastage/seal integrity | ＜3‰ (Count from actual production, except warm-up ones) |
| Motor power (KW) | 30 |
| Electricity | 3+N+E 380/220V 50Hz |
| Voltage tolerance | ≦±5%, use regulator if necessary |
| Dimension (mm) | 4600*1500*3600 |
| Installation dimension (mm) | 7000*6000*4900 |
| Film width (mm) | 320 ± 1 or 260 ± 1 |
| Max. film weight | 20kg |
| Compressed air | ≥0.6Mpa, 3m3/h |
| Steam | >4bars, 5kg/h |
| H2O2 standard | 35% food grade |
| H2O2 consumption | 1L each time for filing chamber sterilization; 1L/4H for production |
| Water consumption | 500L/each CIP process |
| No. | Name | Imported | Country |
| 1 | Main Control System | B&R PCC | Austria |
| 2 | Materiel & CIP Valve | APV | U.K. |
| 3 | Level Control Valve | GEMU | Germany |
| 4 | Level Sensor | E+H | Germany |
| 5 | Cylinder | FESTO | Germany |
| 6 | Angle Seat Valve | GEMU | Germany |
| 7 | High-Speed Electromagnetism Valve | MAC | U.S. |
| 8 | Steam Reducing Valve | PICUT (Watson McDaniel) | U.S. |
| 9 | Motor | ABB | Sweden |
| 10 | H2O2 Pump | Nikuni | Japan |
| 11 | Step Driver | SHAPHON | U.S. |
| 12 | Spraying systems | Spraying Systems | U.S. |
| 13 | Human interface | Hitachi | Taiwan |
| 14 | Electric Switch | Schneider | France |
| 15 | Switch | TURCK | Germany |
| 16 | Laser Sensor | BANNER | U.S. |
|
