| Categories | CWDM Mux Demux |
|---|---|
| Brand Name: | Seacent |
| Model Number: | 8 CHANNEL CWDM Cassette type |
| Certification: | CE RoHS FCC,ISO9001,CE,FCC,RoHS |
| Place of Origin: | Guangdong,China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Delivery Time: | 5-8 work days |
| Product Name:: | CWDM Mux And Demux |
| Type: | 8 CHANNEL Coarse Wavelength Division Multiplexer |
| Channel wavelength: | 1270~1610nm |
| Channel spacing: | 20nm |
| Warranty: | 3 Years |
| Channel passband（@ -0.5dbbandwidth): | >14nm |
| Connector: | LC/APC Connector |
| Company Info. |
| Shenzhen Seacent Photonics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

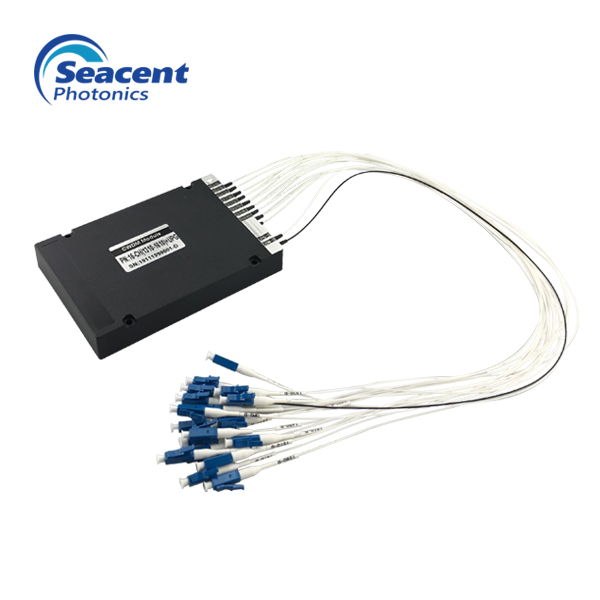

CWDM Mux And Demux Coarse Wavelength Division Multiplexer Module 1270~1610nm
Product description
CWDM is using optical multiplexers to re-use different wavelengths of light into a single fiber-transmitted signal. At the receiving end of the link, the mixed signal is decomposed into signal splits in the fiber by means of an optical demultiplexer. Different wavelengths are connected to the corresponding receiving device
CWDM Mux And Demux feature
Low Insertion Loss
More wavelength transmission , save fiber resource
High Isolation
High Reliability and Stability
CWDM Mux And Demux Application field
Telecom System / Wireless Network
CATV System
Broadband wavelength division system
CWDM Mux And Demux technical parameter
| parameter | 4 channels | 8 channels |
| Center wavelength(nm) | ITU or ITU+1(Customizable starting wavelength) | |
| Product Features | Mux orDemux or Mux&Demux | |
| Channel wavelength (nm) | 1270~1610 | |
| Center wavelength accuracy (nm) | ±0.5 | |
| Channel spacing (nm) | 20 | |
| Channel passband(@ -0.5dbbandwidth(nm) | >14 | |
| Insertion loss(dB) | ≤1.4 | ≤3.0 |
| Channel uniformity(dB) | ≤0.5 | ≤0.5 |
| Channel ripple(dB) | 0.3 | |
| Isolation(dB) Adjacent | >30 | >30 |
| Isolation (dB) Non adjacent | >40 | >40 |
| Polarization dependent loss(dB) | <0.2 | |
| Polarization mode dispersion(PS) | <0.1 | |
| Directionality(dB) | >50 | |
| Return loss(dB) | >45 | |
| Connector type | LC/APC or customized | |
| Maximum power(mW) | 500 | |
| Operating temperature(℃) | -20~70 | |
| Storage temperature(℃) | -40~85 | |
| Package type(mm) | LGX,Box, rack or customer designation | |
CWDM Mux And Demux Details
Business advantage
Service:
(1) Experience in serving large customers for more than 8 years
(2) Independently provide product solutions and packaging solutions for customers
(3) Have strong strategic partners
