| Categories | Stud Welding Pins |
|---|---|
| Product name: | Capacitor Discharge Weld Pins |
| Pin diameter: | 1mm,1.5mm,2mm,2.74mm,3.0mm,3.4mm,4mm,,5mm |
| material: | Mild steel ,stainless steel ,aluminum alloy |
| type: | soft steel nails |
| length: | 10mm-240mm |
| Washer type: | dome caps |
| OEM/ODM: | Support |
| Service: | door to door service |
| Brand Name: | HUIHAO |
| Model Number: | Capacitor Discharge Weld Pins |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union,paypal |
| Supply Ability: | 500000pcs per 20 days |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be according your requirements to pack. |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
| Attribute | Value |
|---|---|
| Product name | Capacitor Discharge Weld Pins |
| Pin diameter | 1mm, 1.5mm, 2mm, 2.74mm, 3.0mm, 3.4mm, 4mm, 5mm |
| Material | Mild steel, stainless steel, aluminum alloy |
| Type | Soft steel nails |
| Length | 10mm-240mm |
| Washer type | Dome caps |
| OEM/ODM | Support |
| Service | Door to door service |

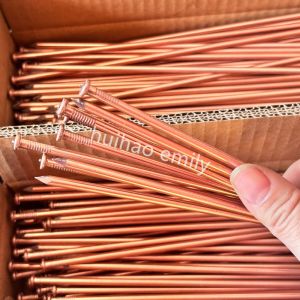

Copper plated capacitor discharge (CD) stud welding pins are designed for deck insulation applications, offering reliable fastening solutions for various construction needs.
We recommend capacitor discharge pins for welding to clean surfaces. For difficult surfaces, the "Power Base" weld pin is designed to weld through paint and rust, eliminating the need for base metal grinding. Both types are available in various diameters and lengths.
| SIZE | D | STEEL FD | ALUM. FD |
|---|---|---|---|
| 14 GA | .080 | .160 | --- |
| 12 GA | .105 | .180 | .230 |
| 10 GA | .135 | .195 | .250 |
| 9 GA | .148 | .230 | --- |
| MATERIAL | LOW CARBON STEEL | STAINLESS STEEL | ALUMINUM |
|---|---|---|---|
| Composition | C - 0.23% max Mn - 0.90% max | P - 0.04% max. S - 0.05% max AISI grade - 302/304/305 std. | Alloy - 1100-H14 standard |
| MECHANICAL PROPERTIES | Tensile - 60,000 psi (min) Yield - 50,000 psi (min.) Elongation - 20% (in two inches) | Values for various grades available upon request. | Values for various alloys available upon request. |
| PLATING | Copper coating standard (other platings available) | Does not apply to stainless | |
| ANNEALING | Pins are annealed where required | Does not apply |
|
