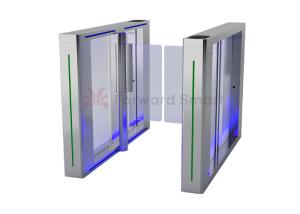

#304 Stainless Steel Swing Vertical Speed Gate Turnstile

Automatic intelligent price economical swing turnstile gate price

The turnstile provides a basic tripod to control access smoothly and effectively by basic operation ,and also prevent illegal in and out .The machine is well in design, rustproof, durable and can resist external destroy

Auto-drop-arm function: The middle arm can drop down automatically (default) (or free passing) when the power is off.
Emergency-escape function: The middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
The structure has no motor.

Function Specifications:
Both directions can be set as controlled mode or free mode.
NO mode & NC mode can be switched over by users easily & freely.
Self-recovery function: The machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width ≥ 100ms, driving current ≥ 10mA), compatible with all kinds of access controllers.
Each machine can be set by Physical Address (Optional).
Equipped with free control software for man-machine interface & control command SDK.

Framework Specifications:
Framework: 304 (Standard) / 202 grade stainless steel
Thickness of Ply: 1.5mm (Standard)

Finishing: Brushed surface (Standard) / Polishing surface
Arm Length: 600mm
Arm Diameter: 38mm (Standard)
Max Tolerance of Arm: 35kg
Driving Force of Arm: 3.5kg

Electric Specifications:
Full automatical type and Semi-automatical type
Power Voltage: AC220V 50Hz(Standard) / AC85~240V 50or60Hz

Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485 (1CH) / RS232 (3CH); Available to CAN BUS and Ethernet (Optional)
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 30~35 passage / minute
Work Environment: Indoor / Outdoor (Shelter)
Traffic-light Indication

Customized Features:
Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module

Applications:
Office building
Government
School
Hotel
Super market
Bank
Park
