| Categories | Load Cell Module |
|---|---|
| Brand Name: | conhon |
| Model Number: | CHMK-002 |
| Certification: | - |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | Online consultation |
| Payment Terms: | T/T |
| Supply Ability: | 100000+pc+one week |
| Delivery Time: | one week |
| Packaging Details: | Carton |
| Range: | 500 to 2000 kg |
| Protection class: | IP68 |
| product name: | Load Cell Module |
| Material & Plate: | alloy steel |
| hysteresis: | 0.3%F.S. |
| Impedance: | 700Ω |

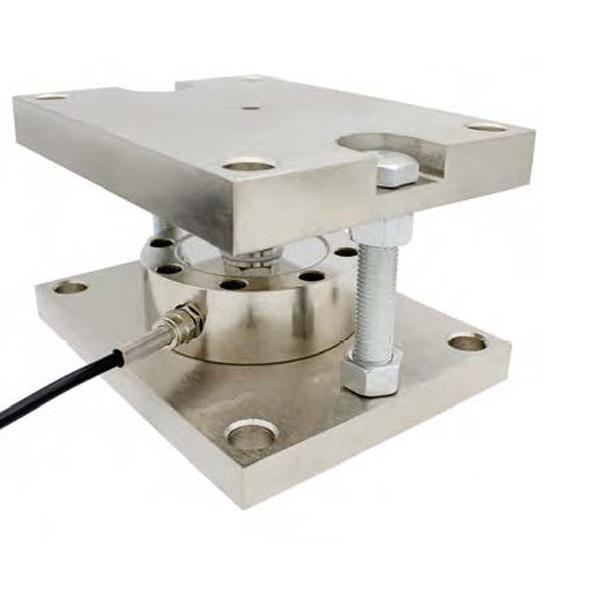

CONHON CHMK-002 Load Cell Module Spoke load cell Weighing module
Load cell accessories
Functions and uses of CHMK-002 load cell module
· Using a unique spoke-type load cell with high weighing accuracy.
Unique structure allows easy installation on various storage tanks
Eliminates weighing errors due to thermal expansion and contraction
of the tank
· Support bolts, coatings for textile equipment
· High-quality alloy steel, silver forged surface, stainless steel
optional
Simple and fast installation
· Easy replacement, saving parking and maintenance time
Suitable for weighing and control of tank ingredients
CHMK-002 load cell module Dimensions:
|
