| Categories | PWM Solar Charge Controller |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001, CE, SGS |
| Supply Ability: | 10000PCS |
| Packaging Details: | Multiple packaging |
| MOQ: | Negotiable |
| Price: | Negotiation |
| Rated Voltage: | 12V/24V |
| Temperature compensation: | -4.0mv/℃/2V |
| USB Output: | 5V/1.2A |
| Working temperature: | -35℃ to +65℃ |
| Protection level: | IP30 |
| Weight: | 120g |
| No-load loss: | < 10mA/12V;10mA/24V |
| Maximum Current: | 10A |
| Dimensions: | 124.7*69.4*34.0(mm)(L*W*H) |
| Charge mode: | PWM Charging |
| Application: | Collector Controller |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

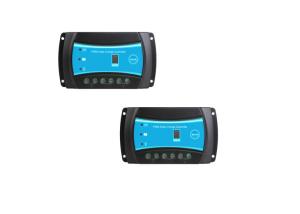

24 Volt Automatic Solar Charge Controller
Product Description
Features of SR-LM10A
1. Designed in industrial-scale which can suitable use for harsh
environments.
2. LED digital display and single key operations which makes
operate simply and conveniently.
3. Adopting ternary form charging algorithm, charge the storage
battery in equalizing charge mode once a week .It can prevent
battery from imbalance and vulcanization effectively, also battery
service life will be extended.
4. Four working modes which made it convenient to use in all kinds
of street lamps and monitoring devices.
5. Automatic identification of 12V/24V system voltage.
6. 5V USB output connector can use for charging electronic
equipment.
7. Has the electricity protection data function .Parameter can be
stored when the power system failure. No need to setting again. It
is very simple and convenient to use.
8. Various status indications.
9. Over charging protection, over discharging protection, over
load, short circuit protection, reverse polarity protection
10. TVS lightning protection.
Parameter of SR-LM10A
System voltage | 12V/24V Auto |
System current | 10A |
No-load loss | < 10mA/12V;10mA/24V |
Solar energy input voltage | < 55V |
Over voltage protection | 17.0V; ×2/24V |
Equal charging voltage | 14.6V; ×2/24V(25℃), duration:1h |
Ascending charging voltage | 14.4V; ×2/24V(25℃), duration:2h |
Float charging voltage | 13.8V; ×2/24V (25℃) |
Return voltage during charging | 13.2V; ×2/24V (25℃) |
Return voltage for over-discharging | 12.6V; ×2/24V |
Under voltage | 12.0V; ×2/24V |
Over-discharging voltage | 11.1V; ×2/24V |
Temperature compensation | -4.0mv/℃/2V |
Light-control voltage | Light-control open 5V; light-control close 6V |
Light-control judgment time | 10min |
USB Output | 5V/1.2A |
Circuit protection | Over-charge, over-discharge, short circuit and over-load protection |
Anti- connection-reverse protection for solar battery and storage battery. | |
Working temperature | -35℃ to +65℃ |
Protection level | IP30 |
Weight | 120g |
Dimensions | 124.7×69.4×34.0(mm)(L×W×H) |
Detail of SR-LM10A
|
