Double Columns Carton Package Drop Paper Testing Equipments

Categories Paper Testing Equipments
Brand Name: AISRY
Model Number: ASR-8515
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Delivery Time: 15 work days
Packaging Details: Standard export wooden case
Drop Height: 40~150/40~180cm Can be customized
Max size of Specimen: 1200*800*1000mm
Test Method: Point, Edge, Face
Drop Height Error: ±10mm
Power Supply: AC380V 50HZ
Max Weight: 80Kg
Net Weight: 350kg
Size of Test Bench: 1700*1400*10mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

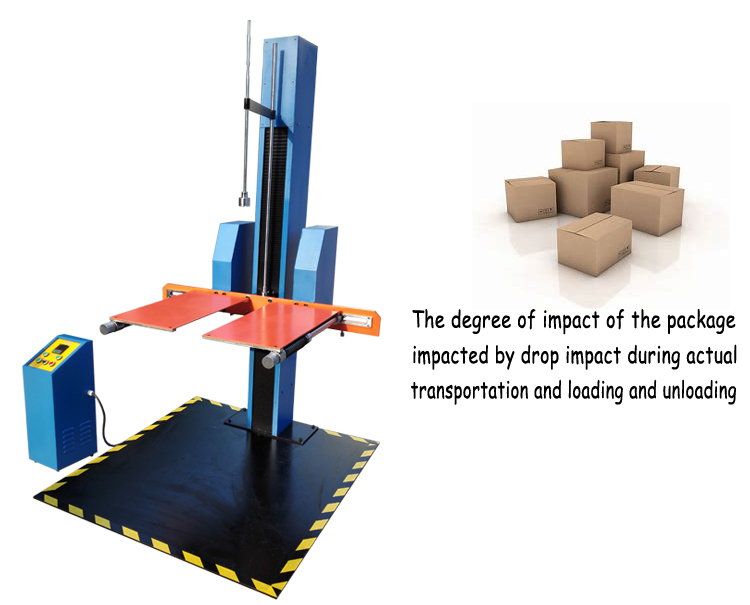

Double Columns Carton Package Drop Paper Testing Equipments


High Quality Double Wings Drop Tester For Parcel And Carton


Application :

Double columns carton package drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.

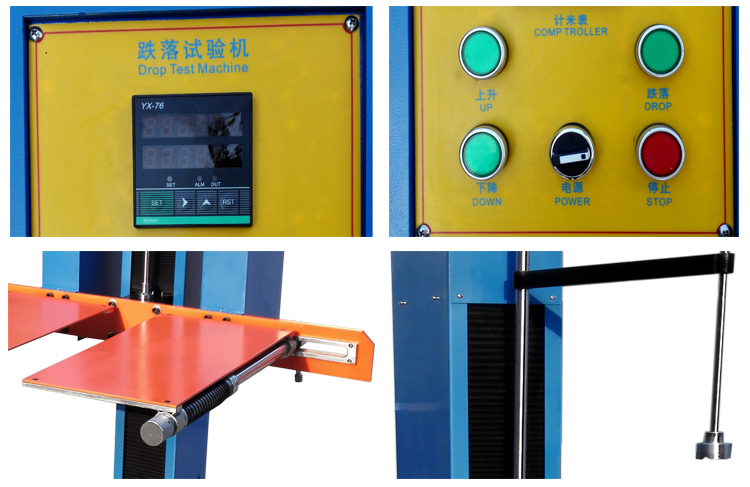

Features :

1, Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.

2, With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.

3, Damping screw lifting mechanism, preventing drop institution unexpectedly glide.

4, Pneumatic automatic chain, preventing swing arm unusual break away.

5, Extensible support bracket and baseboard.


Specifications:

Quality Assurance Digital Double Wings Drop Testing Machine
ModelASR-8515
Drop height400~1500mm can adjustable
Outside Dimension1200*800*1000mm
WeightAbout 450kg
Test load0~80kg
Size bracket arm290*240*8mm
Drop error±10mm
Drop panel area1700*1400*10mm
Drop bottom mediumsteel plate
Fall and lift wayElectric fall and rise
Horsepower1HP(750W)
PowerAC380V 50HZ
