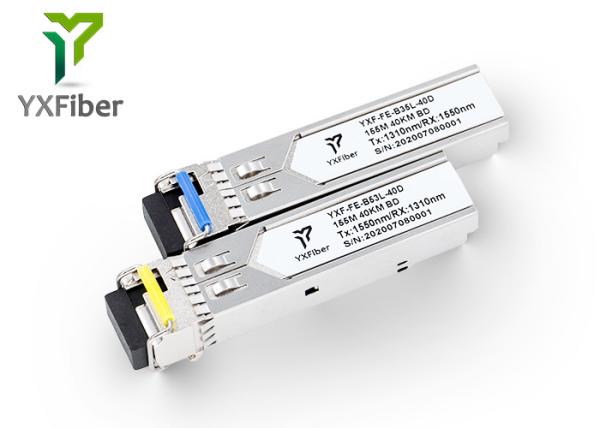

Compliant MSA SFF-8472 BIDI SFP 155M SFP 40km Transceiver

Categories Optical Fiber Module
Brand Name: YXFiber
Model Number: YXF-FE-S35L-40D/YXF-FE-S53L-40D
Certification: CE RoHS FCC
Place of Origin: Hubei, China
MOQ: 1 pair
Price: $12/pair
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000pcs per month
Delivery Time: 1~3working days after payment
Packaging Details: 10pcs in Plastic tray
Type: Fiber Optic Transceivers
No. of Fiber: 1.
Use: FTTX
Supply Voltage: 3.3V
Power: 0~-8dBm
Data rate: 155Mbps
Wavelength: Tx1330nm/Rx1550nm, Tx1550nm/Rx1330nm
Transmission distance: 40km
Interface: BIDI LC
Fiber Type: SMF
DDMI: Yes
Warranty: 1 Year
Selling Units: 1 Pair
Single package size : 22X5X6 cm
Single gross weight: 0.100 kg
Package Type: 10pcs/ anti-static box.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Compliant MSA SFF-8472 BIDI SFP 155M SFP 40km Transceiver

155M SFP BIDI 40km 1330nm-1550nm LC Connector

Features

  • l Up to 40km transmission on SMF
  • l Up to 10.3125Gbps
  • l 1550nm/1330nm DFB laser and PIN receiver
  • l SFI electrical interface
  • l 2-wire interface for integrated Digital Diagnostic monitoring
  • l SFP+ MSA package with single LC connector
  • l Hot pluggable
  • l Very low EMI and excellent ESD protection
  • l +3.3V power supply
  • l Power consumption less than 1.0W
  • l Operating case temperature: 0~+70°C

Applications

  • l High-speed storage area networks
  • l Computer cluster cross-connect
  • l Custom high-speed data pipes

Compliance

  • l Compliant with IEEE 802.3ae-2002
  • l Compliant with MSA SFF-8472
  • l Compliant with MSA SFF-8431

Specification

Technical ParametersDescriptionsUnit
Model NumberYXF-PP-B35L-40D, YXF-PP-B53L-40D
Fiber typeSMF
Form FactorBIDI SFP+
Data Rate10Gbps
WavelengthTX1330/RX1550, TX1550/RX1330nm
Distance80KM
Sensitivity<-33.0dBm
ConnectorLC
LaserDFB/PIN
DDMYes
Output Power0~-8dBm
Power Supply3.3V
Temperature0~70°C
CertificateCE,NOA,ROHS,ISO,FCC,SGS
Warranty1Year
