Food Safe 450BPH 18.9L Pure Water Filling Machine

Categories 5 Gallon Bottle Filling Machine
Brand Name: FILL PACK
Model Number: QGF-450
Certification: CE, ISO9001
Place of Origin: ZhangJiaGang JiangSu China
MOQ: 1 set
Price: USD $6000-$8000/set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month
Delivery Time: 15-20 working days
Packaging Details: wooden case
bottle Volume: 18.9 L bottle
Capacity: 450bottles per hour
Filling Accuracy: ±5mm
Bottle type: Customized
Dimension(L*W*H): 3600*2000*1800mm
Voltage: 380V 50Hz
Checking Light: 1000*100*450
Conveyor Belt with Motor: 10m+2 motors
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Food Safe 450BPH 18.9L Pure Water Filling Machine

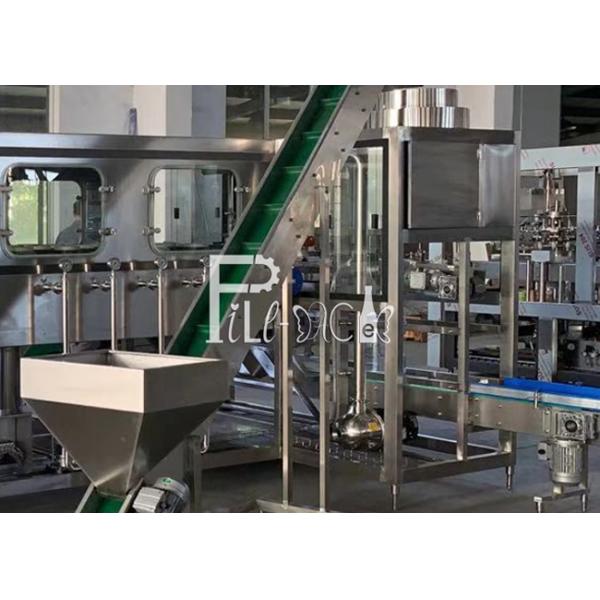

Description of 450BPH Barrel / Bucket / Gallon filling line for 18.9L bottle


Equipment list of Gallon filling line:

1.1Automatic De-capperBG-1600*600*20001set
1.2Rotary external washerRXT-31800*1550*17501set
1.3L type Washer/Filler/Capper with auto bottle loadingWFC-450H4600*2000*18001set
1.4Heat Shrinking Machine/800*600*12001set
1.5Checking LightCL-11000*100*4501pc
1.6Conveyor Belt with Motor/10m+2 motors1set
1.7Code printerOH-338/1set

1, Automatic De-capper:

Parameters
Dimension
650*800*1600mm
Weight
100kg

2, Rotary external washer
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.


3, Monoblock gallon rinser-filler-capper

The 5 Gallon filling equipment set up do not need plug floor screw, after case taking off, set the machine on the flat floor, and then adjust stand height and adjust all stand pressure to be average. After the machine is set up well, get in through water pipe, drain pipe and power, air power.


Parameters:

Material: SUS304

Power: 5KW

Dimension: 3600*2000*1800mm

Weight: 800kg


4, Steam shrink Machine


5, Ink jet code printer

ModelQGF-100QGF-300QGF-450QGF-600QGF-9000QGF-1200
Filling heads1234612
Volume(gallon)3&53&53&53&53&53&5
Barrel size(mm)270-490270-490270-490270-490270-490270-490
Capacity(b/h)60-100250-300400-450600-800800-9001000-1200
Gas pressure(Mpa)0.4-0.60.4-0.60.4-0.60.60.60.6
Gas consumption(m³/m)0.370.60.811.51.8
Moto power (kw)1.383.83.87.59.7513.5
Rated Voltage(V)380V/50HZ380V/50HZ380V/50HZ380V/50HZ380V/50HZ380V/50HZ
Weight(kg)68015002100300035004500

Our Services
1. Installation and commissioning services
The full-time service engineer with many years of relevant experience is responsible for the installation and commissioning of the equipment to the qualified, and the acceptance equipment enters the production state.

2. Adequate parts library
In order to reduce the cost of the customer's parts inventory and provide better and faster service, the company has prepared sufficient equipment parts and components as inventory, so you can quickly repair or maintain the required parts within one year. provide.

3. Professional technical training
In order to ensure that your technicians can correctly understand the performance, operation and maintenance procedures of the equipment, in addition to the normal installation site technical training, we can provide users with on-site training and operation conditions to other similar production plants, and can also be held in the factory. All kinds of professional training and training will help you master technology faster and more comprehensively.
