| Categories | Rotary Vibrating Screen |
|---|---|
| Brand Name: | TECHANG |
| Model Number: | TCXZS |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | One set |
| Price: | Negotiatable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | Wooden case |
| Name: | 1200 Mm High Frequency 2 Layers Vibratory Sieving With Stainless Steel |
| Material: | Stainless Steel |
| Layer(s): | 1-5 Layers |
| Mesh size: | 2~500 mesh |
| Capacity: | 20 KG/H~20 T/H |
| Surface: | Mirror polish |
| Motor Type: | Vibrating motor |
| Frequency: | 50 / 60 HZ |
| Function: | Screening \ Separation \ Classification \ Filter |
| Customized: | Acceptable |
Introduction

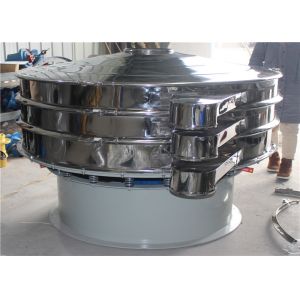

1200 Mm High Frequency 2 Layers Vibratory Sieving With Stainless Steel is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
1200 Mm High Frequency 2 Layers Vibratory Sieving With Stainless
Steel consists of top cover, screen frame, screening mesh, clamp,
vibrator, vibration motor, support base, and so on.
Specification
| Power | Diameter of screen surface | layer | Mesh size |
| TCXZS600 | 0.37kw | 560mm | 1-5 | 0-500mesh |
| TCXZS800 | 0.55KW | 760mm | 1-5 | 0-500mesh |
| TCXZS1000 | 0.75KW | 930mm | 1-5 | 0-500mesh |
| TCXZS1200 | 1.5KW | 1130mm | 1-5 | 0-500mesh |
| TCXZS1500 | 2.0KW | 1430mm | 1-5 | 0-500mesh |
| TCXZS1800 | 2.2KW | 1730mm | 1-5 | 0-500mesh |
| TCXZS2000 | 2.5KW | 1930mm | 1-5 | 0-500mesh |
Application
1200 Mm High Frequency 2 Layers Vibratory Sieving With Stainless
Steel is widely used in ore, mining industry, food industry,
chemical industry, medical industry, waste treatment, etc. Main
functions are removing impurity, filtering, classification of
material, solid-liquid separation, screening.
Advantages
1. Can be used with single or multilayer screen mesh.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
|
