Full Color Remote Control SMD3535 P6 Led Moving Message Display

Categories LED Advertising Billboard
Brand Name: XGC
Model Number: P6
Certification: CE ,FCC, ROSH CCC
Place of Origin: Shenzhen,China
MOQ: 1PCS/ 1 ㎡
Price: USD900--USD1100 /㎡
Payment Terms: T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram
Supply Ability: 5000㎡ per month.
Delivery Time: 7-15 days
Packaging Details: Plywood case、flight case
Product name: LED Display Panel Outdoor
Screen dimension: 576*576mm , or Customized
Tube chip color: Full Color ,SMD3535 /SMD2727
Display function: Video,picture,Outdoor,text,graphics
Application: video wall , pole , hanging up ,standing ,moving ,etc
Weight: 78kg/㎡
Power supply: G-energy / Chuanglian AC 110~220V
Refresh rate: 1920Hz,1920/3840
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Full Color Remote Control SMD3535 P6 Led Moving Message Display

P6 full color remote control LED screen energy saving led moving message display


Features:

1. Waterproof Outdoor IP65 Cabinet size can be Customized as your LED Display Size;

2. Installation CAD drawing structure can be provided as you project ;

3. Wide Viewing angle can attract more passersby's attentions

4. Best color uniformity and high brightness to keep outstanding performance;

5. The brightness can be adjusted automatically as the environmental changes;

6. Long lifetime and low power consumption;

7. Excellent service including free technical support,when in the warranty or out of the warranty;

8. Based on CE, FCC,ROHS Certification.


Technical Parameter for P6 OUTDOOR DOUBLE SIDES LED DISPLAY

Module Specifications
1Pixel Pitch6mm
2Led TypeSMD3535
3Pixel configuration1R1G1B
4Module Size192x192mm
5Module Resolution32x32pixels
6LED ChipEpistar
7LED brandHongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1Cabinet Size960x960mm
2Cabinet Resolution192x192 pixels/side
3Module Qty.3x6pcs/side
4Power Supply5V40A 200W/ 5V60A 300W
6Cabinet Materialsiron cabinet
7Power flight socket1set
Screen Parameters
1Pixel density27777dots/㎡
2Screen Resolutionaccording to screen size
3Cabinet Qty.according to screen size
4Brightness≥5500 CD/sqm
5Refresh rate≥1920Hz/s
6Scanning Mode1/8 scan
7Viewing AngleH:140°;V:140°
8Viewing Distance≥6m
9Gray Level16 Bit
10Power InputAC110~240V
11Power ComsuptionMax: 1000W/㎡ Average:300W/㎡
12MTBF--hours>10,000 hours
13Life--hours≥100,000 hours
14IP GradeIP65/IP54
15Operating Temperature-35℃~ 65℃
16Storage Humidity10℃~90℃RH
17Control SyetemColorlight/Nova/Linsn
18Operating SystemWindows98/me/2000 /NT/XP
19Power Supply5V40A 200W/5V60A 300W
20Maintance AccessBack service/Front service
21Control modecomputer /USB/WIFI/4G

HS code: 8528591090


Outdoor waterproof sealed iron LED cabinet design:

Regular plywood package:

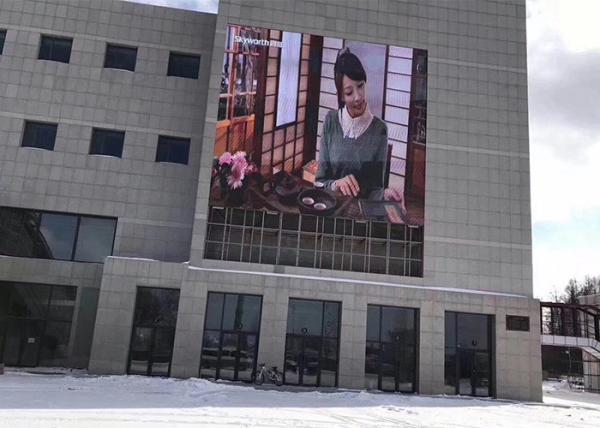

Common outdoor product project case:


Support

Customized steel support, the quality is very good.
There are over 15 holes , you can make the support at any hole to set suitable height for your project.

Control mode
This product support remote control, you can use computer /smartphone/iPad to control screen from everywhere via internet.


Our Service:

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.


Shipping Information:

  • FOB Port:Shenzhen
  • Lead Time:7 - 15days
  • Dimensions per Unit:132 × 105 × 115 Centimeters
  • Weight per Unit:260 Kilograms
  • Units per Export Carton5.5sqm

Product Certifications

  • Certificate Standard:EMC View verified certificate
  • Certificate Number:TMC160628003-E
  • Issue Date:04-Jul-2014
  • Issued By:TMC Testing Services(Shenzhen) Co.,Ltd
  • Expiry Date:04-Jul-2025
  • Scope/Range:Security
  • Certificate Standard:FCC View verified certificate
  • Certificate Number:TMC160628004-E
  • Issue Date:04-Jul-2016
  • Issued By:TMC Testing Services(Shenzhen) Co.,Ltd
  • Expiry Date:04-Jul-2025
  • Scope/Range:Environmental protection
  • Certificate Standard:ROHS View verified certificate
  • Certificate Number:TMC160628003-C
  • Issue Date:04-Jul-2016
  • Issued By:TMC Testing Services(Shenzhen) Co.,Ltd
  • Expiry Date:04-Jul-2025
  • Scope/Range:Environmental protection

Primary Competitive Advantages:

  • Brand-name Parts
  • Origin
  • Distributorships Offered
  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Packaging
  • Price
  • Product Features
  • Product Performance
  • Prompt Delivery
  • Quality Approvals
  • Reputation
